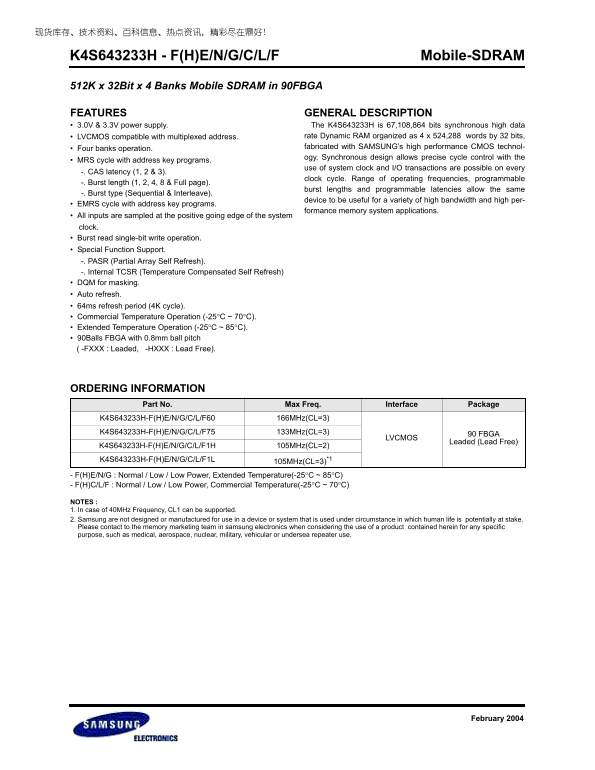

K4S643233H - F(H)E/N/G/C/L/F Mobile-SDRAM 512K x 32Bit x 4 Banks Mobile SDRAM in 90FBGA
FEATURES GENERAL DESCRIPTION • 3.0V & 3.3V power supply. The K4S643233H is 67,108,864 bits synchronous high data
• LVCMOS compatible with multiplexed address. rate Dynamic RAM organized as 4 x 524,288 words by 32 bits, • Four banks operation. fabricated with SAMSUNG’s high performance CMOS technol- ogy. Synchronous design allows precise cycle control with the
• MRS cycle with address key programs.
use of system clock and I/O transactions are possible on every
-. CAS latency (1, 2 & 3).
clock cycle. Range of operating frequencies, programmable
-. Burst length (1, 2, 4, 8 & Full page).
burst lengths and programmable latencies allow the same
-. Burst type (Sequential & Interleave).
device to be useful for a variety of high bandwidth and high per-
• EMRS cycle with address key programs.
formance memory system applications.
• All inputs are sampled at the positive going edge of the system clock. • Burst read single-bit write operation. • Special Function Support. -. PASR (Partial Array Self Refresh). -. Internal TCSR (Temperature Compensated Self Refresh) • DQM for masking. • Auto refresh. • 64ms refresh period (4K cycle). • Commercial Temperature Operation (-25°C ~ 70°C). • Extended Temperature Operation (-25°C ~ 85°C). • 90Balls FBGA with 0.8mm ball pitch ( -FXXX : Leaded, -HXXX : Lead Free).
ORDERING INFORMATION
Part No. Max Freq. Interface Package
K4S643233H-F(H)E/N/G/C/L/F60 166MHz(CL=3)
K4S643233H-F(H)E/N/G/C/L/F75 133MHz(CL=3)
90 FBGA
LVCMOS
Leaded (Lead Free)
K4S643233H-F(H)E/N/G/C/L/F1H 105MHz(CL=2)
105MHz(CL=3)*1
- F(H)E/N/G : Normal / Low / Low Power, Extended Temperature(-25°C ~ 85°C) - F(H)C/L/F : Normal / Low / Low Power, Commercial Temperature(-25°C ~ 70°C)
NOTES : 1. In case of 40MHz Frequency, CL1 can be supported. 2. Samsung are not designed or manufactured for use in a device or system that is used under circumstance in which human life is potentially at stake. Please contact to the memory marketing team in samsung electronics when considering the use of a product contained herein for any specific purpose, such as medical, aerospace, nuclear, military, vehicular or undersea repeater use.
February 2004
Page Summary Contents For SAMSUNG K4S643233H - F(H)E N G C L F Service Manual, User Guide (1)(1)
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 12 |
| File Size | 156.06 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical operating temperature range for this SDRAM module?
The recommended extended operation temperature range is -25°C to 85°C. Commercial operation ranges from -25°C to 70°C.
How do I power up and initialize the device?
Apply VDD before or with VDDQ, maintain stable power/clock for 200us, issue precharge commands (all banks), perform auto-refresh commands, and finally set the mode register.
What are the main low-power features available?
The device supports SASR, PASR (Partial Array Self Refresh), which help manage power consumption in conjunction with internal TCSR (Temperature Compensated Self Refresh).
Does manual control of certain operations require specific steps?
EMRS cycle is not mandatory. The device defaults to full driver strength and full array refreshed unless EMRS commands define PASR or DS operating modes.
