These high-efficiency InGaAℓP LED lamps are designed as surface-mount components for superior performance in various applications. The manual provides comprehensive technical documentation, including detailed electrical and optical characteristics, customizable color variations, and luminous intensity data. Ideal for engineers developing general consumer electronics such as LCD backlighting systems, mobile phones, indicators, and battery-operated compact devices.

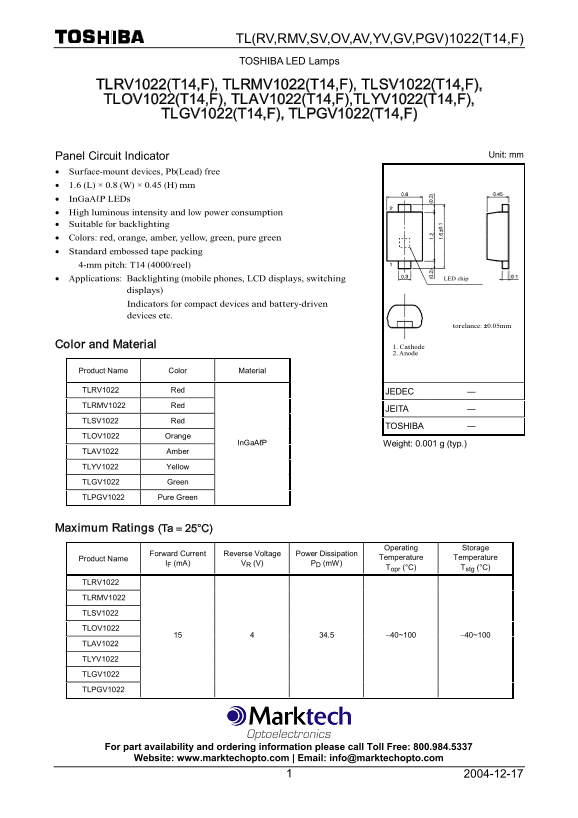

Page 1 Text Content
TL(RV,RMV,SV,OV,AV,YV,GV,PGV)1022(T14,F)
TOSHIBA LED Lamps
TLRV1022(T14,F), TLRMV1022(T14,F), TLSV1022(T14,F), TLOV1022(T14,F), TLAV1022(T14,F),TLYV1022(T14,F),
TLGV1022(T14,F), TLPGV1022(T14,F)
Panel Circuit Indicator Unit: mm
Surface-mount devices, Pb(Lead) free 1.6 (L) × 0.8 (W) × 0.45 (H) mm In Ga AℓP LEDs High luminous intensity and low power consumption Suitable for backlighting Colors: red, orange, amber, yellow, green, pure green Standard embossed tape packing 4-mm pitch: T14 (4000/reel)
Applications: Backlighting (mobile phones, LCD displays, switching LED chip
displays) Indicators for compact devices and battery-driven devices etc.
torelance: ±0.05mm
Color and Material 1. Cathode
2. Anode
Product Name Color Material
TLRV1022 Red JEDEC ― TLRMV1022 Red
JEITA ―
TLSV1022 Red
TOSHIBA ―
TLOV1022 Orange
In Ga AℓP Weight: 0.001 g (typ.)
TLAV1022 Amber
TLYV1022 Yellow
TLGV1022 Green
TLPGV1022 Pure Green
Maximum Ratings (Ta 25°C)
Operating Storage
Forward Current Reverse Voltage Power Dissipation
Product Name Temperature Temperature
IF (m A) VR (V) PD (m W)
Topr (°C) Tstg (°C)
TLRV1022
TLRMV1022
TLSV1022
TLOV1022
TLAV1022
TLYV1022
TLGV1022
TLPGV1022
For part availability and ordering information please call Toll Free: 800.984.5337 Website: www.marktechopto.com | Email: [email protected]
Page Summary Contents For Toshiba TLRV1022(T14,F), TLRMV1022(T14,F), TLSV1022(T14,F), TLOV1022(T14,F), TLAV1022(T14,F), TLYV1022(T14,F), TLGV1022(T14,F), TLPGV1022(T14,F) User Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 17 |
| File Size | 279.40 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What color variations are available for these indicator LEDs?
Colors include red, orange, amber, yellow, green, and pure green.
In what types of devices are these LED lamps best suited for use?
They are designed for applications like backlighting (LCDs/mobile phones) or as indicators in portable, battery-driven devices.
Are there any safety warnings regarding the materials used in this product?
Yes, GaAs (Gallium Arsenide) is used; do not break, cut, crush, or chemically dissolve it. All designs must comply with proper safety standards.
What are the general operating conditions and physical dimensions?
They feature a 4-mm pitch, come in standard embossed tape packing, and measure approximately 1.6mm (L) × 0.8mm (W) × 0.45mm (H).
