Toshiba Photointerrupter Infrared LED + Photo IC TLP1004A(F), TLP1005A(F) Data Manual
Summary
These digital output photo-interrupters are robust optocouplers designed to combine GaAs infrared LED technology with highly sensitive Si photo ICs. Compatible with TTL, LSTTL, and CMOS circuits, these devices feature built-in Schmitt circuitry for dependable signal detection (Low/High level outputs available). The supplied manual provides comprehensive details on electrical specifications, operating conditions, and application guidelines. They are ideal for use across general electronics, including home appliances, office equipment (printers, copiers), and automated service machines requiring precise position sensing or reliable digital switching.
Page 1 Text Content
查询TLP1004A供应商

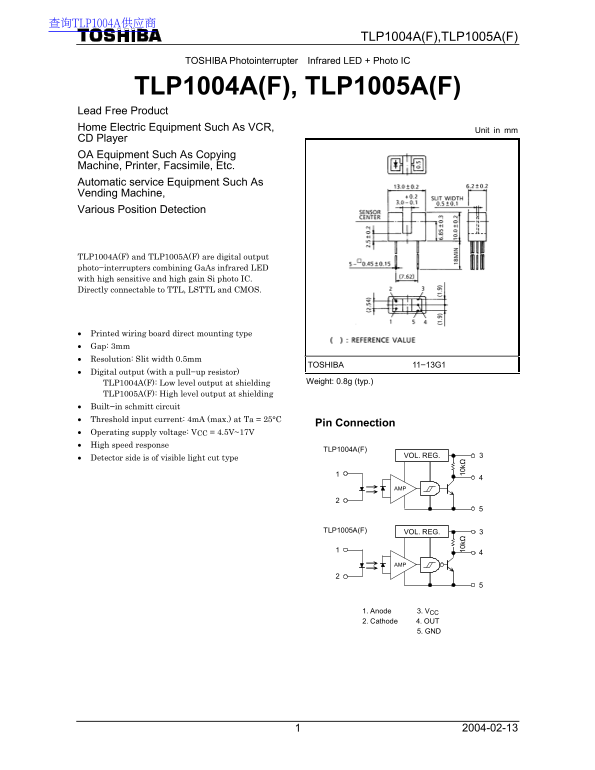

TLP1004A(F),TLP1005A(F)
TOSHIBA Photointerrupter Infrared LED + Photo IC
TLP1004A(F), TLP1005A(F) Lead Free Product Home Electric Equipment Such As VCR,
Unit in mm
CD Player OA Equipment Such As Copying Machine, Printer, Facsimile, Etc. Automatic service Equipment Such As Vending Machine, Various Position Detection
TLP1004A(F) and TLP1005A(F) are digital output photo−interrupters combining Ga As infrared LED with high sensitive and high gain Si photo IC. Directly connectable to TTL, LSTTL and CMOS.
• Printed wiring board direct mounting type • Gap: 3mm • Resolution: Slit width 0.5mm
TOSHIBA 11−13G1
• Digital output (with a pull−up resistor)
TLP1004A(F): Low level output at shielding Weight: 0.8g (typ.)
TLP1005A(F): High level output at shielding • Built−in schmitt circuit • Threshold input current: 4m A (max.) at Ta = 25°C
Pin Connection
• Operating supply voltage: VCC = 4.5V~17V • High speed response
TLP1004A(F)
VOL. REG.
• Detector side is of visible light cut type
TLP1005A(F) VOL. REG.
1. Anode 3. VCC 2. Cathode 4. OUT
5. GND
