Toshiba TOSHIBA Photocoupler GaAℓAs LED & Photo-Ic TLP116 Owner's Manual
Summary
The TLP116 is a high-speed optocoupler featuring an GaAlAs LED and an integrated photodetector, designed to ensure signal isolation in demanding electronic circuits. This manual provides comprehensive technical documentation, covering electrical characteristics, absolute maximum ratings, and recommended operating conditions—essential data for system integration. It is the primary resource for engineers and designers requiring reliable, high-performance components for applications such as Factory Automation (FA), PLCD units, and general industrial control systems.

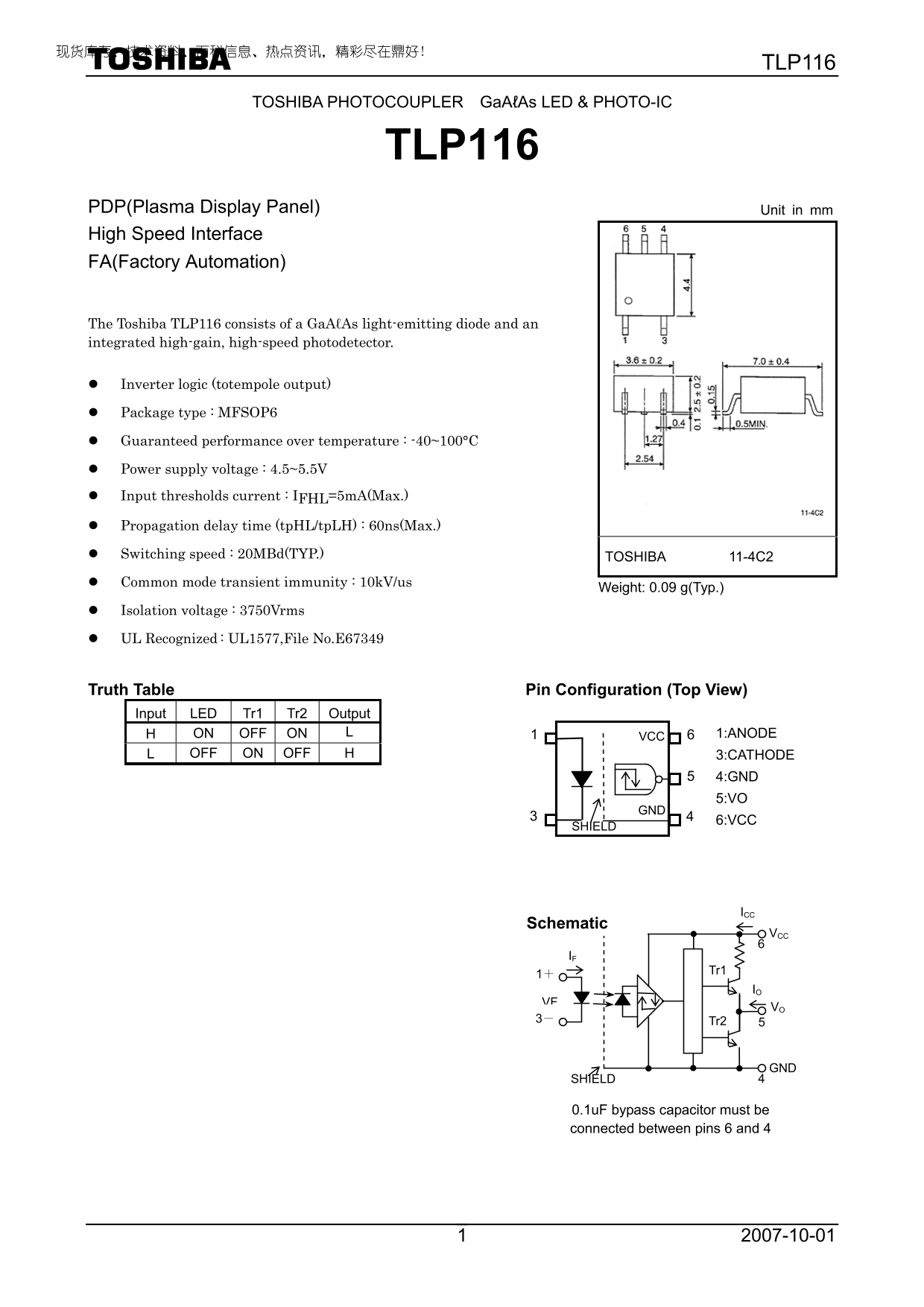

Page 1 Text Content
TLP116
TOSHIBA PHOTOCOUPLER Ga AℓAs LED & PHOTO-IC
TLP116
PDP(Plasma Display Panel) Unit in mm High Speed Interface FA(Factory Automation)
The Toshiba TLP116 consists of a Ga AℓAs light-emitting diode and an integrated high-gain, high-speed photodetector.
Inverter logic (totempole output)
Package type : MFSOP6
Guaranteed performance over temperature : -40~100°C
Power supply voltage : 4.5~5.5V Input thresholds current : IFHL=5m A(Max.)
Propagation delay time (tp HL/tp LH) : 60ns(Max.)
Switching speed : 20MBd(TYP.) TOSHIBA 11-4C2
Common mode transient immunity : 10k V/us
Weight: 0.09 g(Typ.)
Isolation voltage : 3750Vrms
UL Recognized : UL1577,File No.E67349
Truth Table Pin Configuration (Top View) Input LED Tr1 Tr2 Output
H ON OFF ON L 6 VCC 1:ANODE
L OFF ON OFF H 3:CATHODE
4:GND 5:VO
6:VCC
SHIELD
Schematic
3－ Tr2
GND 4SHIELD
0.1u F bypass capacitor must be connected between pins 6 and 4
Page Summary Contents For Toshiba TOSHIBA Photocoupler GaAℓAs LED & Photo-Ic TLP116 Owner's Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 8 |
| File Size | 288.53 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range?
The product operates reliably from -40°C to 100°C.
How do I connect a bypass capacitor?
A 0.1uF bypass capacitor must be connected between pins 6 and 4.
What is the maximum isolation voltage?
The device boasts an isolation voltage of 3750 Vrms.
Does the product require a specific power supply voltage (VCC)?
Yes, it needs VCC between 4.5V and 5.5V for stable operation.
What is the maximum forward current?
The absolute maximum rating for forward current is 20 mA.
