Toshiba TOSHIBA Photocoupler GaAℓAs Ired & Photo−IC TLP114A Owner's Manual & User Guide

Summary

This mini flat optocoupler is designed by TOSHIBA for reliable digital logic signal isolation in various electronic systems. Utilizing high-output GaAℓAs LED technology, it provides superior gate-to-case isolation (3750 Vrms) while maintaining fast switching performance. The product manual serves as a comprehensive technical guide for engineers and design professionals, detailing all electrical parameters, absolute ratings, and transient immunity tests needed for integrating this component into critical applications such as power supply control, switching circuits, and industrial equipment across consumer and commercial sectors.

📄 Preview PAGE OF 7

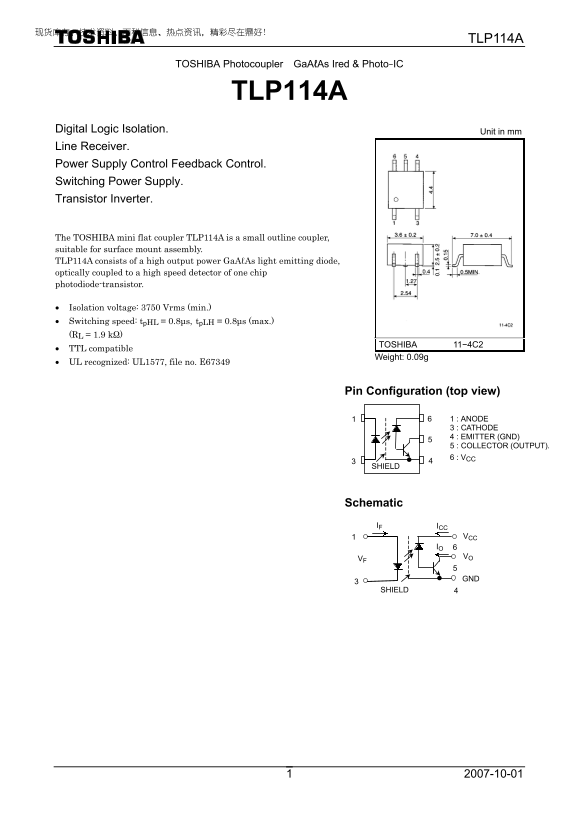

Page 1 Text Content

TLP114A

TOSHIBA Photocoupler Ga AℓAs Ired & Photo−IC

TLP114A

Digital Logic Isolation. Unit in mm Line Receiver. Power Supply Control Feedback Control. Switching Power Supply. Transistor Inverter.

The TOSHIBA mini flat coupler TLP114A is a small outline coupler, suitable for surface mount assembly. TLP114A consists of a high output power Ga AℓAs light emitting diode, optically coupled to a high speed detector of one chip photodiode-transistor.

• Isolation voltage: 3750 Vrms (min.) • Switching speed: tp HL = 0.8μs, tp LH = 0.8μs (max.) (RL = 1.9 kΩ)

TOSHIBA 11−4C2

• TTL compatible

Weight: 0.09g

• UL recognized: UL1577, file no. E67349

Pin Configuration (top view)

1 : ANODE 3 : CATHODE 4 : EMITTER (GND) 5 : COLLECTOR (OUTPUT). 6 : VCC 4

SHIELD

Schematic IF ICC

VCC IO 6 VO

SHIELD

Page Summary Contents For Toshiba TOSHIBA Photocoupler GaAℓAs Ired & Photo−IC TLP114A Owner's Manual & User Guide

Page 1 TLP114A TOSHIBA Photocoupler Ga AℓAs Ired & Photo−IC TLP114A Digital Logic Isolation. Unit in mm Line Receiver. Power Supply Control Feedback Control. Switching Power Supply. Transistor Inverter. ...
Page 2 TLP114A Absolute Maximum Ratings (Ta = 25°C) et ec to Characteristic Symbol Rating Unit Forward current (Note 1) IF 20 m A Pulse forward current (Note 2) IFP 40 m A Peak transient forward current (Not...
Page 3 TLP114A Electrical Characteristics (Ta = 25°C) ou pl ed et ec to Characteristic Symbol Test Condition Min. Typ. Max. Unit Forward voltage VF IF = 16m A 1.22 1.42 1.72 Forward voltage temperature coeff...
Page 4 TLP114A (Note 5) Device considered a two−terminal device: Pins 1 and 3 shorted together, and pins 4, 5 and 6 shorted together. (Note 6) Maximum electrostatic discharge voltage for any pins: 100V(C=200...
Page 5 TLP114A ur re nt tr an sf er ra tio ig le ve l o ut pu t c ur re nc Fo rw ar cu rr en IF – VF ΔVF / Δta – IF Ta = 70°C Forward voltage VF (V) Forward current IF (m A) Fo rw ar vo lta ge te pe ra tu re...
Page 6 TLP114A ro pa ga tio de la tim ut pu t c ur re nt (m L, LH (μ s) tp LH IO – VO VO L – Ta VCC = 5V VCC = 5V Ta = 25°C 0.3 IF = 16m A IO = 2.4m A IF = 5m A Output voltage VO (V) Ambient temperature Ta (...
Page 7 TLP114A RESTRICTIONS ON PRODUCT USE 20070701-EN • The information contained herein is subject to change without notice. • TOSHIBA is continually working to improve the quality and reliability of its p...

Manual Details

Brand Toshiba
Pages 7
File Size 195.26 KB
Published June 01, 2026
36 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the isolation voltage of this coupler?

It has an isolation voltage of 3750 Vrms (min.) MC.

How does the TLP114A couple the light and detector inputs?

It consists of a GaAlAs LED optically coupled to a fast photodiode-transistor detector.

What is the operating temperature range for the product?

The operating temperature range is specified from -55°C to 100°C.
