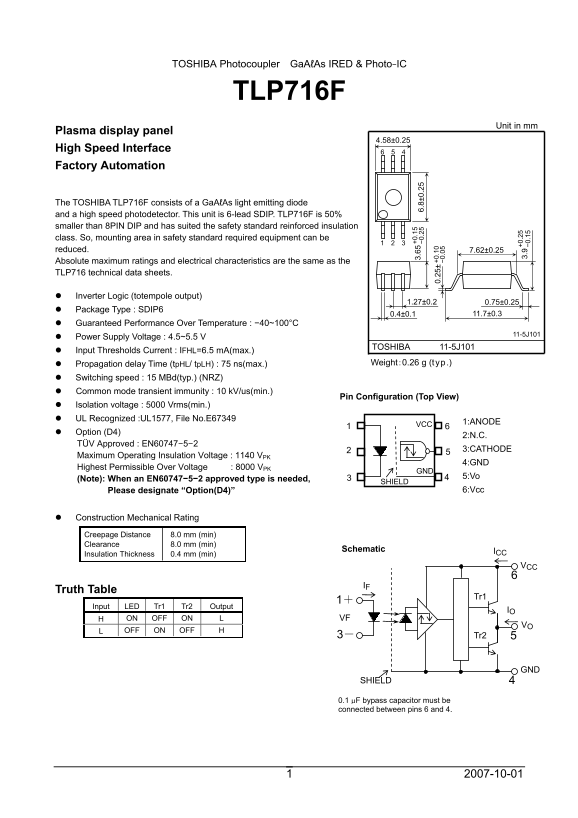

Page 1 Text Content
TOSHIBA Photocoupler Ga AℓAs IRED & Photo−IC
TLP716F
Unit in mm
Plasma display panel
High Speed Interface
Factory Automation
The TOSHIBA TLP716F consists of a Ga AℓAs light emitting diode and a high speed photodetector. This unit is 6-lead SDIP. TLP716F is 50% smaller than 8PIN DIP and has suited the safety standard reinforced insulation class. So, mounting area in safety standard required equipment can be
reduced. 7.62±0.25 Absolute maximum ratings and electrical characteristics are the same as the TLP716 technical data sheets.
Inverter Logic (totempole output)
Package Type : SDIP6
Guaranteed Performance Over Temperature : −40~100°C
Power Supply Voltage : 4.5~5.5 V
TOSHIBA 11-5J101
Input Thresholds Current : IFHL=6.5 m A(max.)
Propagation delay Time (tp HL/ tp LH) : 75 ns(max.) Weight：0.26 g (typ.)
Switching speed : 15 MBd(typ.) (NRZ) Common mode transient immunity : 10 k V/us(min.)
Pin Configuration (Top View)
Isolation voltage : 5000 Vrms(min.)
.1 UL Recognized :UL1577, File No.E67349 3. +0 1:ANODE −0 .2 6. 8± 0.
Option (D4)
0. TÜV Approved : EN60747−5−2 −0 .0
3:CATHODE
Maximum Operating Insulation Voltage : 1140 VPK
4:GND
Highest Permissible Over Voltage : 8000 VPK
(Note): When an EN60747−5−2 approved type is needed,
SHIELD
Please designate “Option(D4)” 6:Vcc
Construction Mechanical Rating
Creepage Distance 8.0 mm (min) Clearance 8.0 mm (min)
Schematic ICC
Insulation Thickness 0.4 mm (min)
Truth Table
Input LED Tr1 Tr2 Output
H ON OFF ON L VF
L OFF ON OFF H
3－ Tr2
GND 4SHIELD
0.1 μF bypass capacitor must be connected between pins 6 and 4.
