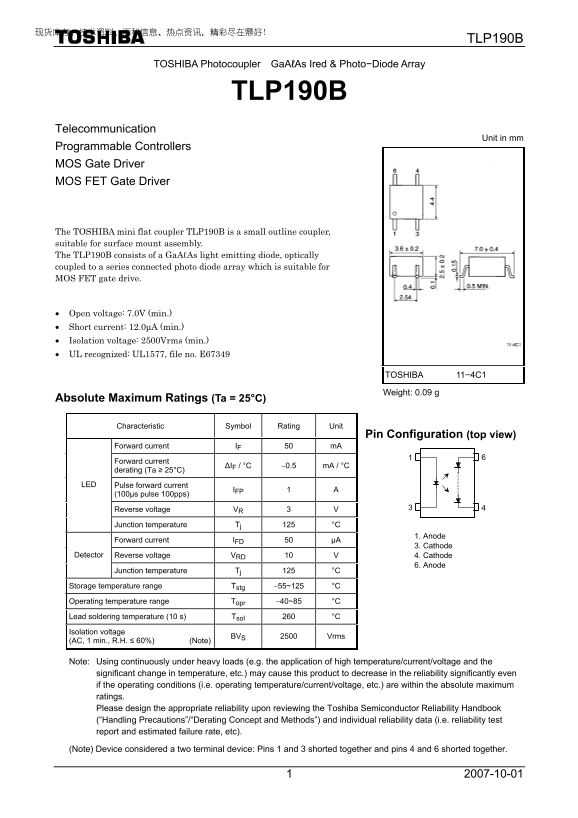

TLP190B
TOSHIBA Photocoupler Ga AℓAs Ired & Photo−Diode Array
TLP190B
Telecommunication
Unit in mm
Programmable Controllers MOS Gate Driver MOS FET Gate Driver
The TOSHIBA mini flat coupler TLP190B is a small outline coupler, suitable for surface mount assembly. The TLP190B consists of a Ga AℓAs light emitting diode, optically coupled to a series connected photo diode array which is suitable for MOS FET gate drive.
• Open voltage: 7.0V (min.) • Short current: 12.0μA (min.) • Isolation voltage: 2500Vrms (min.) • UL recognized: UL1577, file no. E67349
TOSHIBA 11−4C1
Weight: 0.09 g
Absolute Maximum Ratings (Ta = 25°C)
Characteristic Symbol Rating Unit
Pin Configuration (top view)
Forward current IF 50 m A
Forward current derating (Ta ≥ 25°C) ΔIF / °C −0.5 m A / °C
LED Pulse forward current
(100μs pulse 100pps) IFP 1 A
Reverse voltage VR 3 V
Junction temperature Tj 125 °C
1. Anode
Forward current IFD 50 μA
3. Cathode
Reverse voltage VRD 10 V Detector 4. Cathode
6. Anode
Junction temperature Tj 125 °C
Storage temperature range Tstg −55~125 °C
Operating temperature range Topr −40~85 °C
Lead soldering temperature (10 s) Tsol 260 °C
Isolation voltage (AC, 1 min., R.H. ≤ 60%) (Note) BVS 2500 Vrms
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
(Note) Device considered a two terminal device: Pins 1 and 3 shorted together and pins 4 and 6 shorted together.
