This manual details the TLP130 mini flat coupler, an optocoupler designed for surface mount assembly and requiring AC input current. The device uses a photo transistor optically linked to two gallium arsenide infrared LEDs, providing robust electrical isolation (up to 3750 Vrms). Included technical specifications cover its operational parameters, maximum ratings, recommended conditions, detailed switching characteristics, and general usage guidelines. This component is ideal for engineers developing various electronic systems—such as industrial, computer, or domestic appliances—that require secure signal transmission with high system reliability.

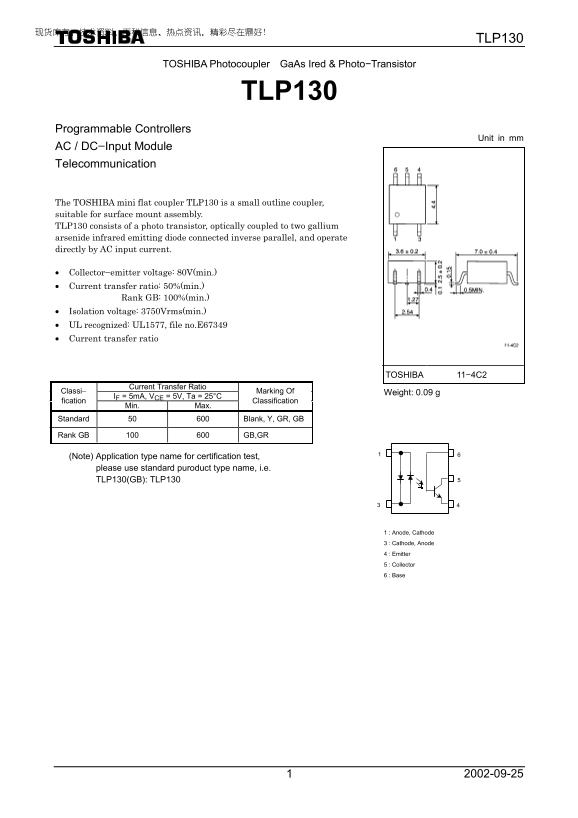

Page 1 Text Content
TLP130
TOSHIBA Photocoupler Ga As Ired & Photo−Transistor
TLP130
Programmable Controllers
Unit in mm
AC / DC−Input Module Telecommunication
The TOSHIBA mini flat coupler TLP130 is a small outline coupler, suitable for surface mount assembly. TLP130 consists of a photo transistor, optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel, and operate directly by AC input current.
Collector−emitter voltage: 80V(min.) Current transfer ratio: 50%(min.) Rank GB: 100%(min.) Isolation voltage: 3750Vrms(min.) UL recognized: UL1577, file no.E67349 Current transfer ratio
TOSHIBA 11−4C2
Current Transfer Ratio
Marking Of Weight: 0.09 g
IF = 5m A, VCE = 5V, Ta = 25°C Classi
fication Min. Max. Classification
Standard 50 600 Blank, Y, GR, GB
Rank GB 100 600 GB,GR
(Note) Application type name for certification test, please use standard puroduct type name, i.e. TLP130(GB): TLP130
1 : Anode, Cathode 3 : Cathode, Anode 4 : Emitter 5 : Collector 6 : Base
Page Summary Contents For Toshiba Photocoupler GaAs Ired & Photo-Transistor TLP130 Specifications (1)(1) User Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 9 |
| File Size | 217.25 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is this photocoupler suitable for surface mount applications?
Yes, the TLP130 is described as a small outline coupler suitable for surface mount assembly.
What is the minimum required AC isolation voltage rating?
The device offers at least 3750 Vrms of isolation voltage (BV) over one minute.
Are there specific applications where I should NOT use this TLP130?
No, it is not warranted for "Unintended Usage," including medical instruments, airplane/spaceship instruments, or atomic energy control devices.
