Toshiba Photocoupler GaAs IRed & Photo-Transistor TLP630 User Manual
Summary
This optocoupler is a high-performance component utilizing GaAs technology for signal isolation in general electronics applications. The comprehensive manual details all technical specifications, including absolute maximum ratings, coupling characteristics, switching times, and robust isolation voltages up to 5000Vrms. It is designed for reliable use across various industrial, computing, and measurement systems requiring signal transfer and high electrical separation.

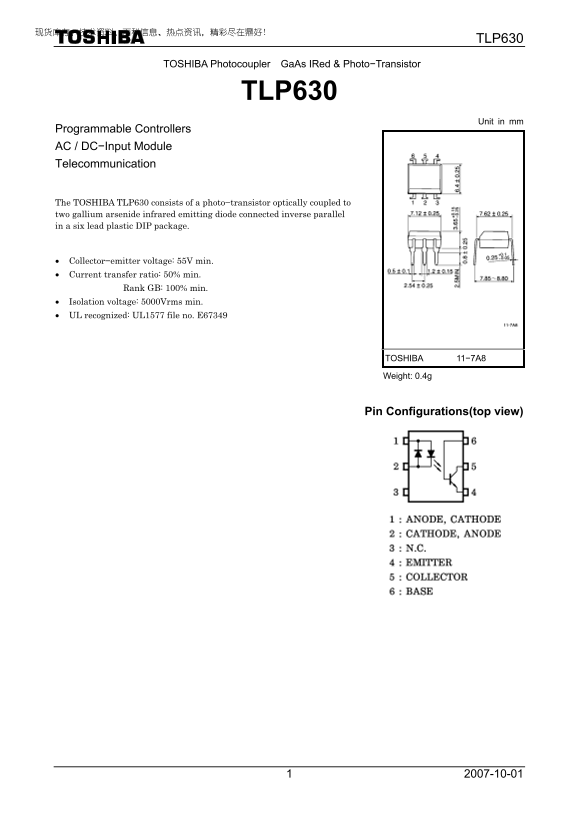

Page 1 Text Content
TLP630
TOSHIBA Photocoupler Ga As IRed & Photo−Transistor
TLP630
Unit in mm
Programmable Controllers AC / DC−Input Module Telecommunication
The TOSHIBA TLP630 consists of a photo−transistor optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel in a six lead plastic DIP package.
• Collector−emitter voltage: 55V min. • Current transfer ratio: 50% min. Rank GB: 100% min. • Isolation voltage: 5000Vrms min. • UL recognized: UL1577 file no. E67349
TOSHIBA 11−7A8
Weight: 0.4g
Pin Configurations(top view)
