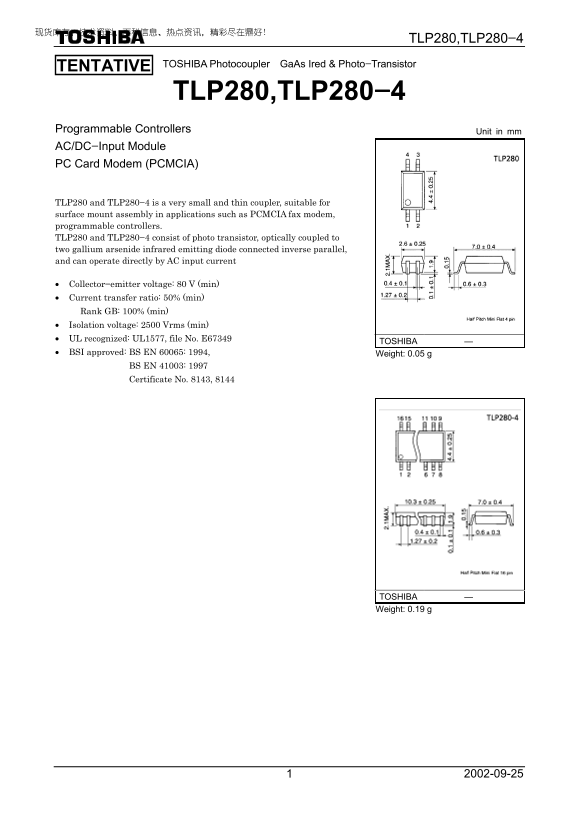

Page 1 Text Content

TLP280,TLP280−4

TOSHIBA Photocoupler Ga As Ired & Photo−Transistor TENTATIVE

TLP280,TLP280−4

Programmable Controllers Unit in mm AC/DC−Input Module PC Card Modem (PCMCIA)

TLP280 and TLP280−4 is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA fax modem, programmable controllers. TLP280 and TLP280−4 consist of photo transistor, optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current

Collector−emitter voltage: 80 V (min) Current transfer ratio: 50% (min) Rank GB: 100% (min) Isolation voltage: 2500 Vrms (min) UL recognized: UL1577, file No. E67349

TOSHIBA ―

BSI approved: BS EN 60065: 1994, Weight: 0.05 g BS EN 41003: 1997 Certificate No. 8143, 8144

TOSHIBA ― Weight: 0.19 g

Page Summary Contents For Toshiba TOSHIBA Photocoupler GaAs Ired & Photo-Transistor TLP280, TLP280-4 User Manual & Instruction Book

Page 1 TLP280,TLP280−4 TOSHIBA Photocoupler Ga As Ired & Photo−Transistor TENTATIVE TLP280,TLP280−4 Programmable Controllers Unit in mm AC/DC−Input Module PC Card Modem (PCMCIA) TLP280 and TLP280−4 is a ...
Page 2 TLP280,TLP280−4 Pin Configuration (top view) TLP280 TLP280-4 1 : Anode Cathode 2 : Cathode Anode 3 : Emitter 4 : Collector 1,3,5,7 : Anode- Cathode 2,4,6,8 : Cathode Anode 9,11,13,15 : Emitter 10,12,1...
Page 3 TLP280,TLP280−4 Maximum Ratings (Ta = 25°C) et ec to Rating Characteristic Symbol Unit TLP280 TLP2804 Forward current IF(RMS) ±50 m A Forward current derating ∆IF /°C 0.7 (Ta ≥ 53°C) 0.5 (Ta ≥ 25°C)...
Page 4 TLP280,TLP280−4 Individual Electrical Characteristics (Ta = 25°C) et ec to LE Characteristic Symbol Test Condition Min Typ Max Unit Forward voltage VF IF = ±10 m A 1.0 1.15 1.3 V Capacitance CT V = 0,...
Page 5 TLP280,TLP280−4 Isolation Characteristics (Ta = 25°C) Characteristic Symbol Test Condition Min Typ. Max Unit Capacitance input to output CS VS = 0V, f = 1 MHz — 0.8 — p F Isolation resistance RS VS = ...
Page 6 TLP280,TLP280−4 Fo rw ar vo lta ge te pe ra tu re oe ffi ci en Al lo ab le fo rw ar cu rre nt Pu ls fo rw ar cu rre nt A) /Δ Ta (m /℃ (m IF – Ta PC – Ta TLP280 TLP280 TLP280-4 TLP280-4 Ambient tempera...
Page 7 TLP280,TLP280−4 ur re nt tr an sf er ra tio ol le ct or ur re nt (m A) ol le ct or ur re nt (m A) IC – VCE IC – VCE Ta = 25℃ Ta = 25℃ PC(MAX.) IF = 2m A IF = 5m A Collector-emitter voltage VCE (V) Col...
Page 8 TLP280,TLP280−4 co lle ct or Em itt er at ur at io Sw itc hi ng ti µs Vo lta ge E( sa t) V) VCE(sat) – Ta IC – Ta 0.04 IF = 0.5m A IF = 8m A, IC = 2.4m A IF = 1m A, IC = 0.2m A VCE = 5V 0.1 Ambient te...
Page 9 TLP280,TLP280−4 000707EBCRESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfuncti...
Page 10 This datasheet has been download from: www.datasheetcatalog.com Datasheets for electronics components.
