These high-reliability optocouplers provide crucial electrical signal isolation by optically coupling a photo-transistor with an infrared emitting diode. Available in single, dual, or quad channel configurations, they are designed for robust performance up to 150mA input current and 5000V isolation voltage. The manual offers comprehensive datasheets covering absolute ratings, electrical characteristics, and recommended usage guidelines, making it the ideal component for engineers designing general electronics applications such as industrial controls, measurement devices, and sophisticated domestic appliances.

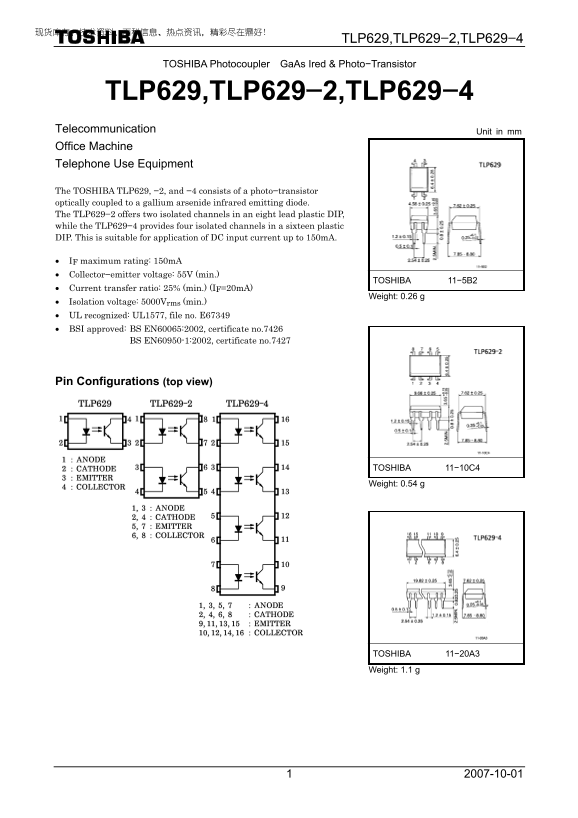

Page 1 Text Content
TLP629,TLP629−2,TLP629−4
TOSHIBA Photocoupler Ga As Ired & Photo−Transistor
TLP629,TLP629−2,TLP629−4 Telecommunication Unit in mm Office Machine Telephone Use Equipment The TOSHIBA TLP629, −2, and −4 consists of a photo−transistor optically coupled to a gallium arsenide infrared emitting diode. The TLP629−2 offers two isolated channels in an eight lead plastic DIP,
while the TLP629−4 provides four isolated channels in a sixteen plastic DIP. This is suitable for application of DC input current up to 150m A.
• IF maximum rating: 150m A • Collector−emitter voltage: 55V (min.)
TOSHIBA 11−5B2
• Current transfer ratio: 25% (min.) (IF=20m A)
Weight: 0.26 g
• Isolation voltage: 5000Vrms (min.) • UL recognized: UL1577, file no. E67349 • BSI approved: BS EN60065:2002, certificate no.7426 BS EN60950-1:2002, certificate no.7427
Pin Configurations (top view)
TOSHIBA 11−10C4 Weight: 0.54 g
TOSHIBA 11−20A3 Weight: 1.1 g
Page Summary Contents For Toshiba Photocoupler GaAs Ired & Photo-Transistor TLP629 User Manual (1), Owner's Manual (1)
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 7 |
| File Size | 528.25 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What models are available for isolated channels?
TLP629−2 offers two channels in an eight lead DIP, while TLP629−4 provides four channels in a sixteen lead DIP.
What is the maximum isolation voltage of the device?
The isolation voltage (BV) is 5000V rms (min.)
What are the operating temperature and current ranges for recommended use?
Recommended operation is between -25 to 85°C for temperature, with a forward current range of 120 mA max.
Are there any restrictions on using this product in critical applications?
No. The products are not intended for usage in equipment requiring extraordinarily high reliability, such as medical or aerospace instruments.
