The TLP160G is a small outline optocoupler designed for surface mount assembly in electronic circuits requiring signal isolation. This manual provides comprehensive technical documentation, featuring detailed electrical characteristics, absolute maximum ratings, and operational guidelines for the photo triac coupler. It is essential reading for engineers designing general electronics applications, including industrial controls and measurement equipment, ensuring proper device implementation and performance validation.

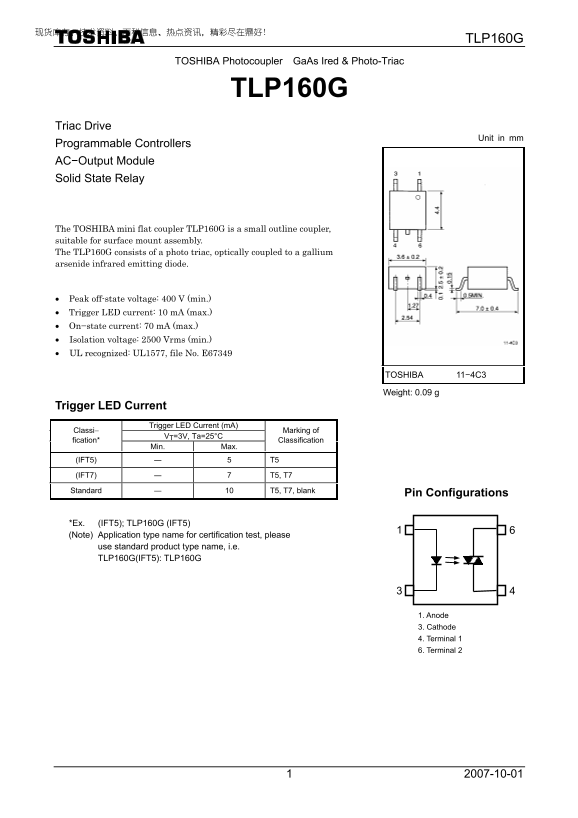

Page 1 Text Content
TLP160G
TOSHIBA Photocoupler Ga As Ired & Photo-Triac
TLP160G
Triac Drive
Unit in mm
Programmable Controllers AC−Output Module Solid State Relay
The TOSHIBA mini flat coupler TLP160G is a small outline coupler, suitable for surface mount assembly. The TLP160G consists of a photo triac, optically coupled to a gallium arsenide infrared emitting diode.
• Peak off-state voltage: 400 V (min.) • Trigger LED current: 10 m A (max.) • On−state current: 70 m A (max.) • Isolation voltage: 2500 Vrms (min.) • UL recognized: UL1577, file No. E67349
TOSHIBA 11−4C3
Weight: 0.09 g
Trigger LED Current
Trigger LED Current (m A)
Classi− Marking of
VT=3V, Ta=25°C
fication* Classification
Min. Max.
(IFT5) ― 5 T5
(IFT7) ― 7 T5, T7
Standard ― 10 T5, T7, blank Pin Configurations
*Ex. (IFT5); TLP160G (IFT5) (Note) Application type name for certification test, please use standard product type name, i.e. TLP160G(IFT5): TLP160G
1. Anode 3. Cathode 4. Terminal 1 6. Terminal 2
