Toshiba Photointerrupter Infrared LED + Photo IC TLP1033A Data Manual
Summary
The TLP1033A is a compact, high-performance photo-interrupter sensor featuring a GaAs infrared LED combined with a sensitive Si photo-IC for reliable digital output. Optimized for low power consumption and applications requiring precision detection, this miniature device is ideal for controlling position detectors in various consumer and industrial equipment. It is designed for use in domestic appliances like VTRs and CD players, office technology (copiers, printers), ATMs, and vending machines. This product summary covers all technical specifications, electrical characteristics, operational ranges, and guidelines necessary for successful PCB mounting and system integration.
Page 1 Text Content
查询TLP1033A供应商

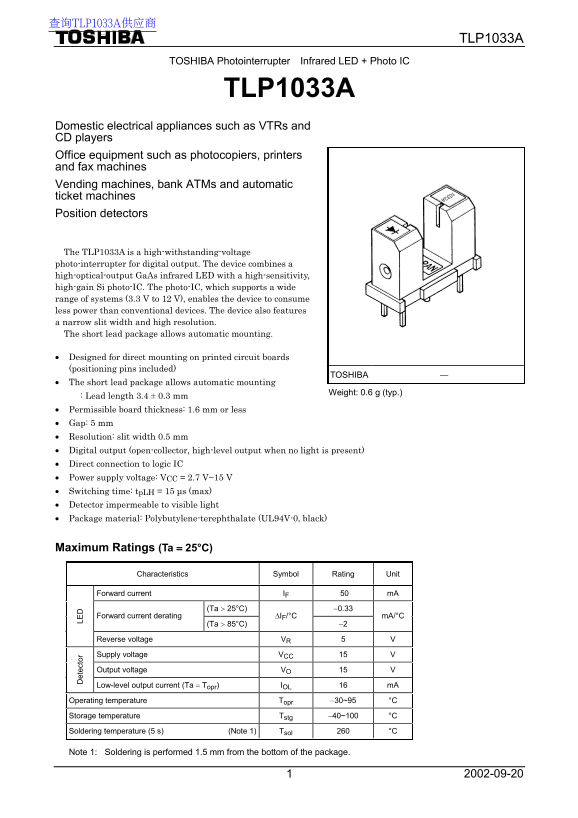

TLP1033A
TOSHIBA Photointerrupter Infrared LED + Photo IC
et ec to LE
TLP1033A
Domestic electrical appliances such as VTRs and CD players Office equipment such as photocopiers, printers and fax machines Vending machines, bank ATMs and automatic ticket machines Position detectors
The TLP1033A is a high-withstanding-voltage photo-interrupter for digital output. The device combines a high-optical-output Ga As infrared LED with a high-sensitivity, high-gain Si photo-IC. The photo-IC, which supports a wide range of systems (3.3 V to 12 V), enables the device to consume less power than conventional devices. The device also features a narrow slit width and high resolution. The short lead package allows automatic mounting.
Designed for direct mounting on printed circuit boards (positioning pins included)
TOSHIBA
The short lead package allows automatic mounting
Weight: 0.6 g (typ.)
: Lead length 3.4 ± 0.3 mm Permissible board thickness: 1.6 mm or less Gap: 5 mm Resolution: slit width 0.5 mm Digital output (open-collector, high-level output when no light is present) Direct connection to logic IC Power supply voltage: VCC = 2.7 V~15 V Switching time: tp LH = 15 µs (max) Detector impermeable to visible light Package material: Polybutylene-terephthalate (UL94V-0, black)
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Forward current IF 50 m A
(Ta 25°C) 0.33
Forward current derating IF/°C m A/°C
(Ta 85°C)
Reverse voltage VR 5 Supply voltage VCC 15 V Output voltage VO 15 V Low-level output current (Ta Topr) IOL 16 m A Operating temperature Topr 30~95 °C Storage temperature Tstg 40~100 °C Soldering temperature (5 s) (Note 1) Tsol 260 °C
Note 1: Soldering is performed 1.5 mm from the bottom of the package.
