The TD62107 series is a robust, high-current Darlington sink driver integrated circuit designed for controlling various loads. Featuring integral clamp diodes and compatibility with both TTL and 5V CMOS inputs, these units are ideal for applications such as relay, lamp, hammer, and stepper motor driving. This technical documentation provides comprehensive details on installation, electrical characteristics, maximum ratings, and recommended operating conditions. It is essential reading for electronics engineers and industrial designers implementing high-power output solutions into general electronic equipment.

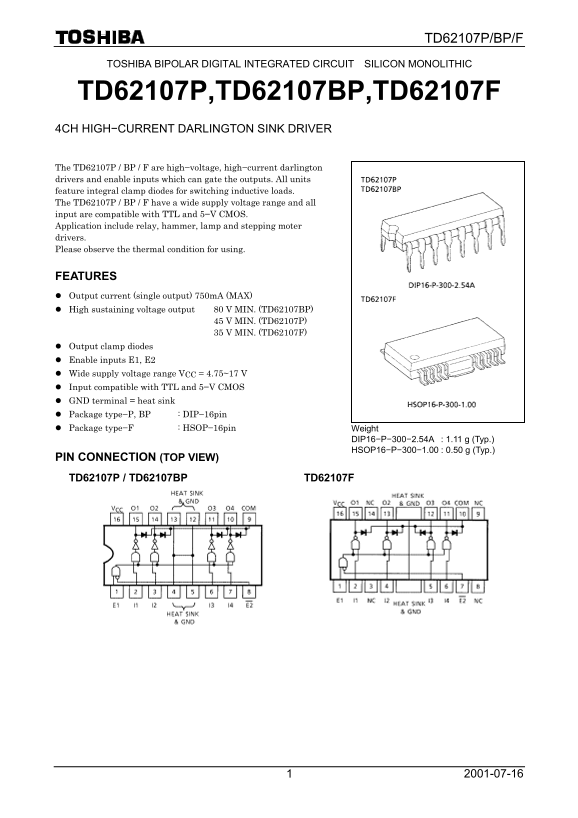

Page 1 Text Content
TD62107P/BP/F
TOSHIBA BIPOLAR DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
TD62107P,TD62107BP,TD62107F 4CH HIGH−CURRENT DARLINGTON SINK DRIVER The TD62107P / BP / F are high−voltage, high−current darlington drivers and enable inputs which can gate the outputs. All units feature integral clamp diodes for switching inductive loads. The TD62107P / BP / F have a wide supply voltage range and all input are compatible with TTL and 5−V CMOS. Application include relay, hammer, lamp and stepping moter drivers. Please observe the thermal condition for using.
FEATURES Output current (single output) 750m A (MAX) High sustaining voltage output 80 V MIN. (TD62107BP) 45 V MIN. (TD62107P) 35 V MIN. (TD62107F) Output clamp diodes Enable inputs E1, E2 Wide supply voltage range VCC = 4.75~17 V Input compatible with TTL and 5−V CMOS GND terminal = heat sink Package type−P, BP : DIP−16pin Package type−F : HSOP−16pin Weight
DIP16−P−300−2.54A : 1.11 g (Typ.) HSOP16−P−300−1.00 : 0.50 g (Typ.)
PIN CONNECTION (TOP VIEW) TD62107P / TD62107BP TD62107F
Page Summary Contents For Toshiba TD62107P BP F Data Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 9 |
| File Size | 252.97 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of loads can the TD62107 series drive?
It is suitable for driving relays, hammers, lamps, and stepping motors.
Which signals are compatible with the input controls (E1, E2)?
The inputs are compatible with both TTL and 5-V CMOS signals.
What is the maximum output current for a single driver?
The specified maximum output current is 750mA.
How must the unit be grounded according to the manual?
The GND terminal should be connected directly to the heat sink.
Are there limitations regarding dangerous usage of this IC?
No, it is not intended for use in equipment requiring extraordinarily high quality or reliability that could cause loss of human life.
