This Toshiba TLWD1100 LED chip is a high-performance surface-mount component designed for demanding lighting applications, including automotive use and general backlighting. This manual provides comprehensive technical specifications, covering detailed electrical parameters, precise chromaticity coordinates, luminous intensity data, and broad operating ranges (-40 to 100°C). It is essential reading for electronics engineers and designers building reliable products in industrial, computing, and domestic appliance markets.

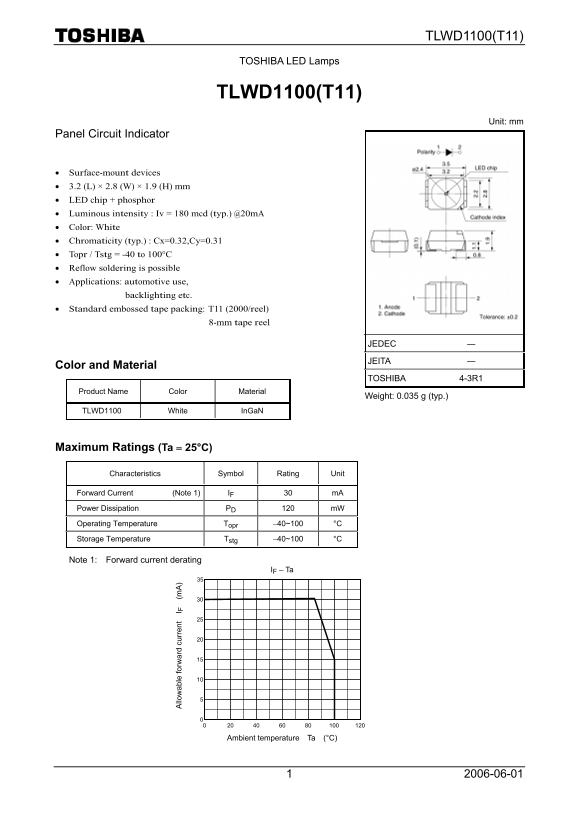

Page 1 Text Content
TLWD1100(T11)
TOSHIBA LED Lamps
TLWD1100(T11)
Unit: mm
Panel Circuit Indicator
• Surface-mount devices
llo ab le fo rw ar cu rr en
• 3.2 (L) × 2.8 (W) × 1.9 (H) mm • LED chip + phosphor • Luminous intensity : Iv = 180 mcd (typ.) @20m A • Color: White • Chromaticity (typ.) : Cx=0.32,Cy=0.31 • Topr / Tstg = -40 to 100°C • Reflow soldering is possible • Applications: automotive use,
backlighting etc.
• Standard embossed tape packing: T11 (2000/reel) 8-mm tape reel
JEDEC ― JEITA ―
Color and Material
TOSHIBA 4-3R1
Weight: 0.035 g (typ.) Product Name Color Material
TLWD1100 White In Ga N
Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Forward Current (Note 1) IF 30 m A
Power Dissipation PD 120 m W
Operating Temperature Topr −40~100 °C
Storage Temperature Tstg −40~100 °C
Note 1: Forward current derating
IF – Ta
Ambient temperature Ta (°C)
Page Summary Contents For Toshiba TOSHIBA - TLWD1100(T11) Data Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 9 |
| File Size | 191.86 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the physical dimensions of this LED indicator unit?
The surface-mount device measures 3.2 (L) × 2.8 (W) × 1.9 (H) mm.
What precautions must be taken when handling this LED component?
Use a conductive tablemat, ground the workbench and floor, and ensure all tools are grounded to prevent damage.
What is the operational temperature range for use?
The operating temperature range (Topr / Tstg) is specified from -40°C to 100°C.
How should the device be stored before soldering?
It must be kept in its moisture-proof bag unopened at a temperature of 5°C~30°C and humidity up to 90% (max).
