These high-performance surface-mount LED lamps are specialized indicators featuring UV chips and vibrant RGB phosphors in bluish green or reddish purple. This manual provides comprehensive technical specifications, including detailed electrical operational limits, precise optical performance charts, suggested reflow soldering profiles, and critical handling instructions for moisture-sensitive assembly. They are ideal for broad general electronics applications, automotive backlighting systems, industrial controls, and other commercial devices requiring reliable indicator lighting.

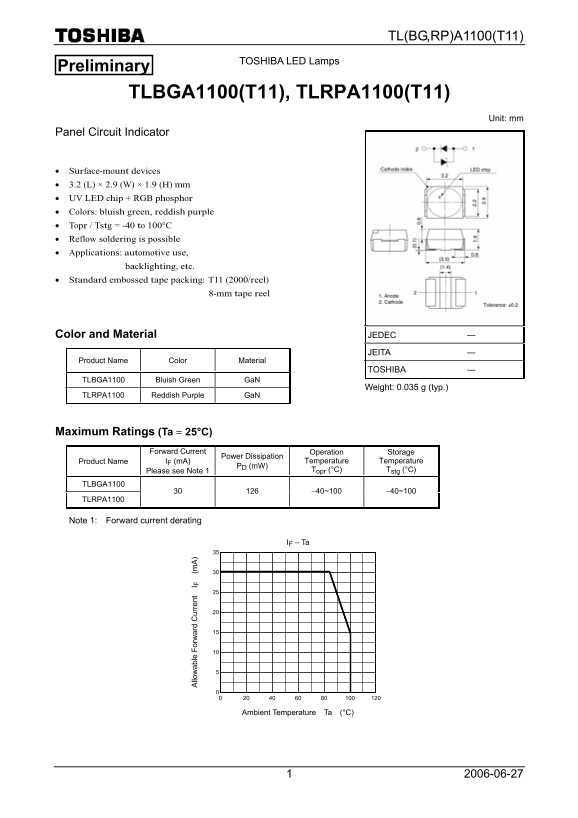

Page 1 Text Content
TL(BG,RP)A1100(T11)
TOSHIBA LED Lamps Preliminary
TLBGA1100(T11), TLRPA1100(T11)
Unit: mm
Panel Circuit Indicator
• Surface-mount devices • 3.2 (L) × 2.9 (W) × 1.9 (H) mm
llo ab le or ar ur re nt (m
• UV LED chip + RGB phosphor • Colors: bluish green, reddish purple • Topr / Tstg = -40 to 100°C • Reflow soldering is possible • Applications: automotive use,
backlighting, etc.
• Standard embossed tape packing: T11 (2000/reel) 8-mm tape reel
Color and Material JEDEC ―
JEITA ―
Product Name Color Material
TOSHIBA ―
TLBGA1100 Bluish Green Ga N
Weight: 0.035 g (typ.)
TLRPA1100 Reddish Purple Ga N
Maximum Ratings (Ta = 25°C)
Forward Current Operation Storage
Power Dissipation
Product Name IF (m A) Temperature Temperature
PD (m W)
Please see Note 1 Topr (°C) Tstg (°C)
TLBGA1100
TLRPA1100
Note 1: Forward current derating
IF – Ta
Ambient Temperature Ta (°C)
Page Summary Contents For Toshiba TL(BG,RP)A1100(T11) Data Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 8 |
| File Size | 183.58 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended mounting method for these LED lamps?
They must be mounted using reflow soldering techniques.
If the moisture indicator changes color, what should I do with the product?
It must be baked in a tare reel under conditions of 60±5°C for 12 to 24 hours.
