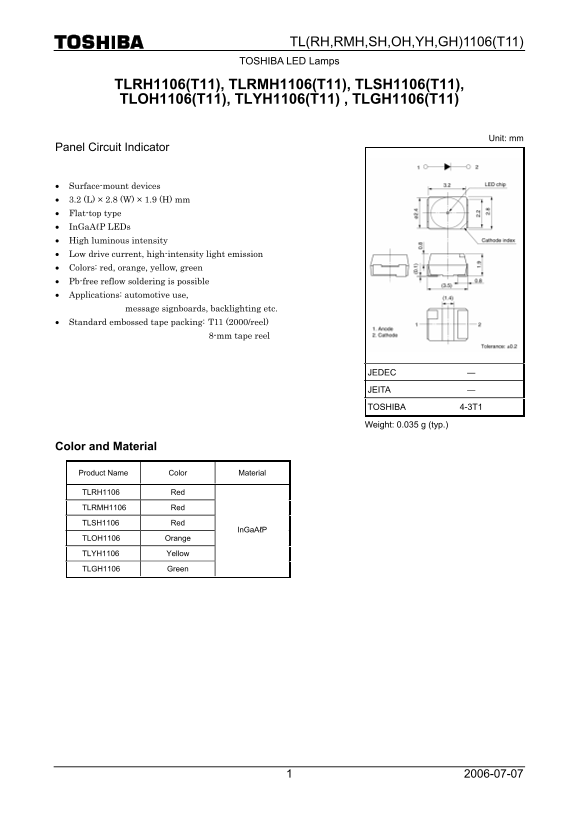

Toshiba TL(RH, RMH, SH, OH, YH, GH)1106(T11) Owner's Manual and User Guide - Page 1

›

Page 1 Text Content

TL(RH,RMH,SH,OH,YH,GH)1106(T11)

TOSHIBA LED Lamps

TLRH1106(T11), TLRMH1106(T11), TLSH1106(T11), TLOH1106(T11), TLYH1106(T11) , TLGH1106(T11)

Unit: mm

Panel Circuit Indicator

• Surface-mount devices • 3.2 (L) × 2.8 (W) × 1.9 (H) mm • Flat-top type • In Ga AℓP LEDs • High luminous intensity • Low drive current, high-intensity light emission • Colors: red, orange, yellow, green • Pb-free reflow soldering is possible • Applications: automotive use,

message signboards, backlighting etc.

• Standard embossed tape packing: T11 (2000/reel) 8-mm tape reel

JEDEC ― JEITA ― TOSHIBA 4-3T1

Weight: 0.035 g (typ.)

Color and Material

Product Name Color Material

TLRH1106 Red

TLRMH1106 Red

TLSH1106 Red

In Ga AℓP

TLOH1106 Orange

TLYH1106 Yellow

TLGH1106 Green

Page Summary Contents For Toshiba TL(RH, RMH, SH, OH, YH, GH)1106(T11) Owner's Manual and User Guide

Page 1 TL(RH,RMH,SH,OH,YH,GH)1106(T11) TOSHIBA LED Lamps TLRH1106(T11), TLRMH1106(T11), TLSH1106(T11), TLOH1106(T11), TLYH1106(T11) , TLGH1106(T11) Unit: mm Panel Circuit Indicator • Surface-mount devices • ...

Page 2 TL(RH,RMH,SH,OH,YH,GH)1106(T11) Maximum Ratings (Ta = 25°C) Forward Current Operation Storage Reverse Voltage Power Dissipation Product Name IF (m A) Temperature Temperature VR (V) PD (m W) Please see...

Page 3 TL(RH,RMH,SH,OH,YH,GH)1106(T11) Optical Characteristics–1 (Ta = 25°C) Luminous Intensity IV Available Iv rank Product Name Min Typ. Max IF Please see Note 2 TLRH1106 160 380 800 50 SA / TA / UA TLRMH1...

Page 4 TL(RH,RMH,SH,OH,YH,GH)1106(T11) TLRH1106 el at iv lu in ou in te ns ity Fo rw ar cu rr en IF – VF IV – IF (typ.) (typ.) Forward voltage VF (V) Forward current IF (m A) Lu in ou in te ns ity (m cd el a...

Page 5 TL(RH,RMH,SH,OH,YH,GH)1106(T11) TLRMH1106 el at iv lu in ou in te ns ity Fo rw ar cu rr en IF – VF IV – IF (typ.) (typ.) Forward voltage VF (V) 1 10 100 3 30 Forward current IF (m A) Lu in ou in te ns...

Page 6 TL(RH,RMH,SH,OH,YH,GH)1106(T11) TLSH1106 el at iv lu in ou in te ns ity Fo rw ar cu rr en IF – VF IV – IF (typ.) (typ.) Forward voltage VF (V) Forward current IF (m A) el at iv lu in ou in te ns ity L...

Page 7 TL(RH,RMH,SH,OH,YH,GH)1106(T11) TLOH1106 el at iv lu in ou in te ns ity Fo rw ar cu rr en IF – VF IV – IF (typ.) (typ.) Forward voltage VF (V) 1 10 3 30 Forward current IF (m A) el at iv lu in ou in t...

Page 8 TL(RH,RMH,SH,OH,YH,GH)1106(T11) TLYH1106 el at iv lu in ou in te ns ity Fo rw ar cu rr en IV – IF IF – VF (typ.) (typ.) Forward voltage VF (V) 1 10 3 30 Forward current IF (m A) el at iv lu in ou in t...

Page 9 TL(RH,RMH,SH,OH,YH,GH)1106(T11) TLGH1106 el at iv lu in ou in te ns ity Iv Fo rw ar cu rr en IF – VF IV – IF (typ.) (typ.) Forward voltage VF (V) Forward current IF (m A) el at iv lu in ou in te ns it...

Page 10 TL(RH,RMH,SH,OH,YH,GH)1106(T11) Packaging These LED devices are packed in an aluminum envelope with a silica gel and a moisture indicator to avoid ac ka ge ur fa ce moisture absorption. The optical ch...

Page 11 TL(RH,RMH,SH,OH,YH,GH)1106(T11) Cleaning When cleaning is required after soldering, Toshiba recommends the following cleaning solvents. It is confirmed that these solvents have no effect on semiconduc...

Page 12 TL(RH,RMH,SH,OH,YH,GH)1106(T11) 3. Reel dimensions Unit: mm 4. Leader and trailer sections of tape 40 mm or more 40 mm or more (Note 1) (Note 2) Leading part: 190 mm (min) Note1: Empty trailer section...

Page 13 TL(RH,RMH,SH,OH,YH,GH)1106(T11) 5. Packing form (1) Packing quantity Reel 2,000 pcs Carton 10,000 pcs (2) Packing form: Each reel is sealed in an aluminum pack with silica gel. 6. Label format (1) Exa...

Page 14 TL(RH,RMH,SH,OH,YH,GH)1106(T11) RESTRICTIONS ON PRODUCT USE • The information contained herein is subject to change without notice. • TOSHIBA is continually working to improve the quality and reliabil...
