Toshiba TOSHIBA TL(RF, SF, OF, YF, PYF, GF, FGF, PGF)1060(T18) User Manual

Summary

These highly versatile Toshiba LED lamps serve as panel circuit indicators and general display light sources across multiple colors (Red, Green, Yellow, etc.). Designed with low drive current and high luminous intensity, they are ideal for demanding applications such as automotive use, message signboards, and backlighting in electronics. This technical guide provides comprehensive data on max ratings, electrical characteristics, and spectral details required by engineers integrating these Pb-free surface-mount components into their designs.

📄 Preview ‹ PAGE OF 16 ›

‹

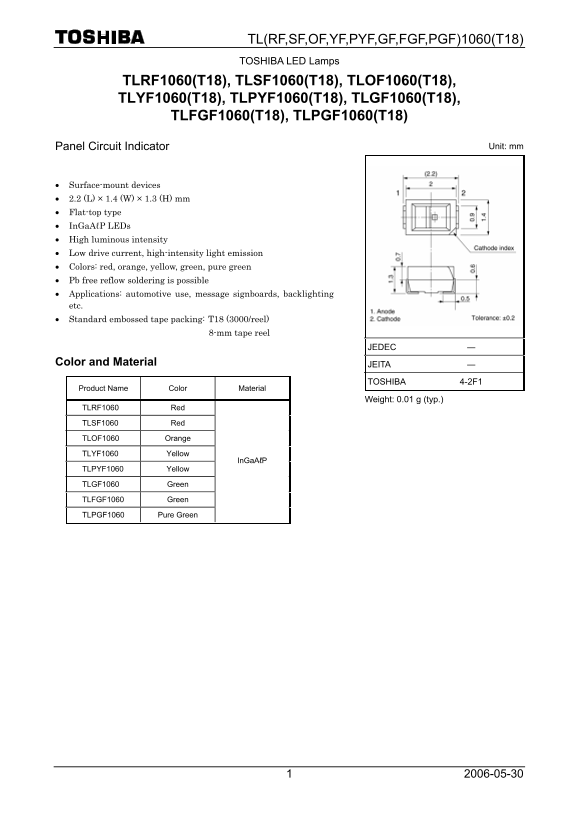

Toshiba TOSHIBA TL(RF, SF, OF, YF, PYF, GF, FGF, PGF)1060(T18) User Manual - Page 1

›

Page 1 Text Content

TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18)

TOSHIBA LED Lamps

TLRF1060(T18), TLSF1060(T18), TLOF1060(T18), TLYF1060(T18), TLPYF1060(T18), TLGF1060(T18), TLFGF1060(T18), TLPGF1060(T18)

Panel Circuit Indicator Unit: mm

• Surface-mount devices • 2.2 (L) × 1.4 (W) × 1.3 (H) mm • Flat-top type • In Ga AℓP LEDs • High luminous intensity • Low drive current, high-intensity light emission • Colors: red, orange, yellow, green, pure green • Pb free reflow soldering is possible • Applications: automotive use, message signboards, backlighting etc. • Standard embossed tape packing: T18 (3000/reel) 8-mm tape reel

JEDEC ―

Color and Material JEITA ―

TOSHIBA 4-2F1

Product Name Color Material

Weight: 0.01 g (typ.)

TLRF1060 Red

TLSF1060 Red

TLOF1060 Orange

TLYF1060 Yellow

In Ga AℓP

TLPYF1060 Yellow

TLGF1060 Green

TLFGF1060 Green

TLPGF1060 Pure Green

Page Summary Contents For Toshiba TOSHIBA TL(RF, SF, OF, YF, PYF, GF, FGF, PGF)1060(T18) User Manual

Page 1 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TOSHIBA LED Lamps TLRF1060(T18), TLSF1060(T18), TLOF1060(T18), TLYF1060(T18), TLPYF1060(T18), TLGF1060(T18), TLFGF1060(T18), TLPGF1060(T18) Panel Circuit Indica...

Page 2 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) Maximum Ratings (Ta = 25°C) Forward Current Operation Storage Reverse Voltage Power Dissipation Product Name IF (m A) Temperature Temperature VR (V) PD (m W) Pl...

Page 3 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) Optical Characteristics–1 (Ta = 25°C) Luminous Intensity IV Available Iv rank Product Name Min Typ. Max IF Please see Note 2 TLRF1060 40 100 320 20 PA / QA / RA...

Page 4 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLRF1060 el at iv in te ns ity Fo rw ar cu rr en IF – VF IV – IF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) el at iv in te...

Page 5 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLSF1060 Fo rw ar cu rr en el at iv in te ns ity IV – IF IF – VF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) Lu in ou in te...

Page 6 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLOF1060 Fo rw ar cu rr en el at iv in te ns ity IF – VF IV – IF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) Lu in ou in te...

Page 7 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLYF1060 Fo rw ar cu rr en el at iv in te ns ity IF – VF IV – IF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) Lu in ou in te...

Page 8 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLPYF1060 Fo rw ar cu rr en el at iv in te ns ity IF – VF IV – IF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) Lu in ou in t...

Page 9 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLGF1060 Fo rw ar cu rr en el at iv in te ns ity IF – VF IV – IF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) Lu in ou in te...

Page 10 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLFGF1060 Fo rw ar cu rr en el at iv in te ns ity IF – VF IV – IF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) Lu in ou in t...

Page 11 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) TLPGF1060 Fo rw ar cu rr en el at iv in te ns ity IF – VF IV – IF (typ.)(typ.) Ta = 25°C Ta = 25°C Forward voltage VF (V) Forward current IF (m A) Lu in ou in t...

Page 12 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) Packaging These LED devices are packed in an aluminum envelope with a silica gel and a moisture indicator to avoid ac ka ge ur fa ce moisture absorption. The op...

Page 13 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) Cleaning When cleaning is required after soldering, Toshiba recommends the following cleaning solvents. It is confirmed that these solvents have no effect on se...

Page 14 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) 3. Reel dimensions Unit: mm 4. Leader and trailer sections of tape 40 mm or more 40 mm or more (Note 1) (Note 2) Leading part: 190 mm (min) Note1: Empty trailer...

Page 15 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) 5. Packing display (1) Packing quantity Reel 3,000 pcs Carton 15,000 pcs (2) Packing form: Each reel is sealed in an aluminum pack with silica gel. 6. Label for...

Page 16 TL(RF,SF,OF,YF,PYF,GF,FGF,PGF)1060(T18) RESTRICTIONS ON PRODUCT USE • The information contained herein is subject to change without notice. • TOSHIBA is continually working to improve the quality and ...

Manual Details

Brand	Toshiba
Pages	16
File Size	375.99 KB
Published	June 02, 2026

60 views

Enter the captcha to get the download link:

Frequently Asked Questions

What colors are available for this LED lamp?

Available colors include red, orange, yellow, green, and pure green.

Can these lamps be used in automotive applications?

Yes, the listed applications include automotive use and message signboards.

Are there specific temperature limits to consider when using the devices?

The product operates within an ambient temperature range of -40°C to 100°C.

What is the package size and format for mounting?

They are surface-mount devices, sized at 2.2(L) × 1.4(W) × 1.3(H) mm.
