TC94A23F
Toshiba CMOS Digital Integrated Circuit Silicon Monolithic
TC94A23F

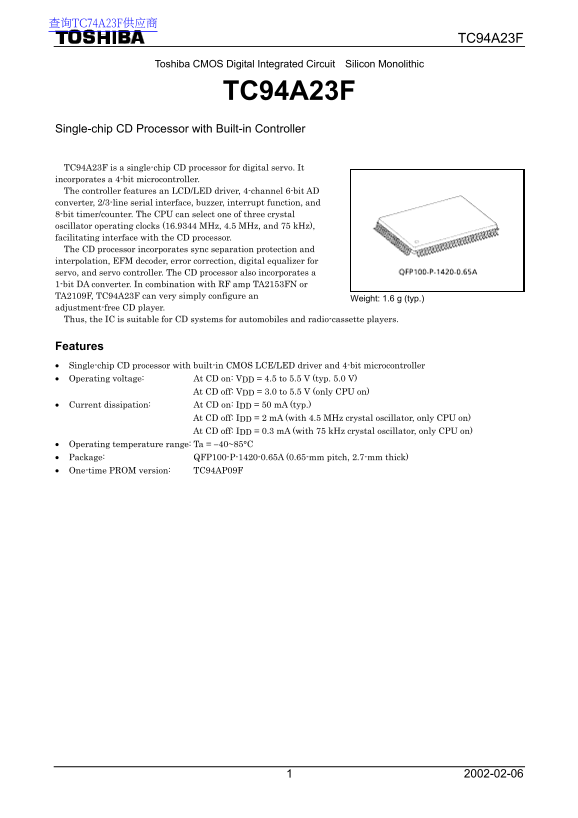

Single-chip CD Processor with Built-in Controller
TC94A23F is a single-chip CD processor for digital servo. It incorporates a 4-bit microcontroller. The controller features an LCD/LED driver, 4-channel 6-bit AD converter, 2/3-line serial interface, buzzer, interrupt function, and 8-bit timer/counter. The CPU can select one of three crystal oscillator operating clocks (16.9344 MHz, 4.5 MHz, and 75 k Hz), facilitating interface with the CD processor. The CD processor incorporates sync separation protection and interpolation, EFM decoder, error correction, digital equalizer for servo, and servo controller. The CD processor also incorporates a 1-bit DA converter. In combination with RF amp TA2153FN or TA2109F, TC94A23F can very simply configure an
Weight: 1.6 g (typ.)
adjustment-free CD player. Thus, the IC is suitable for CD systems for automobiles and radio-cassette players.
Features Single-chip CD processor with built-in CMOS LCE/LED driver and 4-bit microcontroller Operating voltage: At CD on: VDD = 4.5 to 5.5 V (typ. 5.0 V)
At CD off: VDD = 3.0 to 5.5 V (only CPU on)
Current dissipation: At CD on: IDD = 50 m A (typ.)
At CD off: IDD = 2 m A (with 4.5 MHz crystal oscillator, only CPU on) At CD off: IDD = 0.3 m A (with 75 k Hz crystal oscillator, only CPU on)
Operating temperature range: Ta = 40~85°C Package: QFP100-P-1420-0.65A (0.65-mm pitch, 2.7-mm thick) One-time PROM version: TC94AP09F
