Toshiba TLWK1100C(T11) Data Sheet
Summary
The TLWK1100C(T11) is a high-performance, surface-mount white LED lamp designed for general display and backlighting applications, including automotive use. This manual provides comprehensive technical data, detailing electrical characteristics, precise luminous intensity (up to 1700 mcd), chromaticity coordinates, and operational parameters across extreme temperature ranges (-40°C to 100°C). It is essential documentation for engineers integrating the LED into reliable embedded systems, outlining handling precautions, derating concepts, and optimal performance in consumer electronics.
Page 1 Text Content

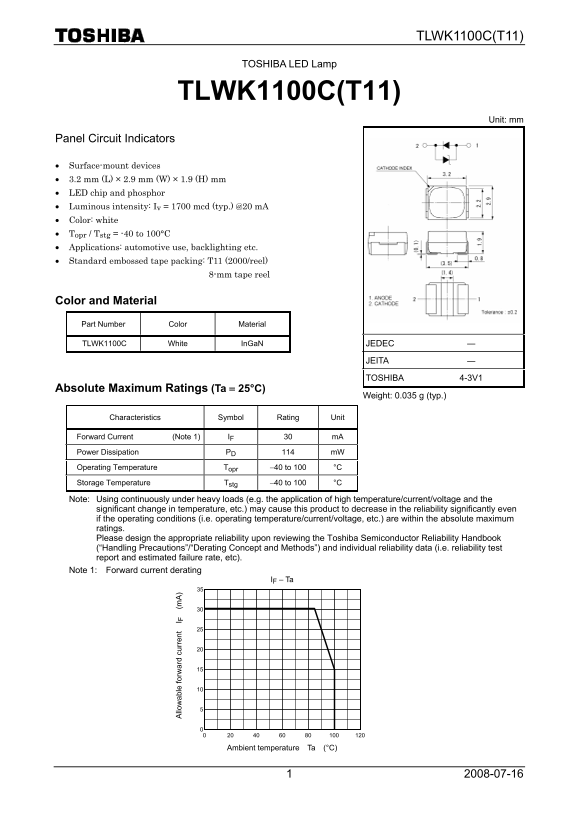

TLWK1100C(T11)
TOSHIBA LED Lamp
TLWK1100C(T11)
Unit: mm
Panel Circuit Indicators
• Surface-mount devices
• 3.2 mm (L) × 2.9 mm (W) × 1.9 (H) mm llo ab le fo rw ar cu rr en
• LED chip and phosphor • Luminous intensity: Iv = 1700 mcd (typ.) @20 m A • Color: white • Topr / Tstg = -40 to 100°C • Applications: automotive use, backlighting etc. • Standard embossed tape packing: T11 (2000/reel) 8-mm tape reel
Color and Material Part Number Color Material
TLWK1100C White In Ga N JEDEC ―
JEITA ― TOSHIBA 4-3V1
Absolute Maximum Ratings (Ta = 25°C)
Weight: 0.035 g (typ.)
Characteristics Symbol Rating Unit
Forward Current (Note 1) IF 30 m A
Power Dissipation PD 114 m W
Operating Temperature Topr −40 to 100 °C
Storage Temperature Tstg −40 to 100 °C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Note 1: Forward current derating
IF – Ta
Ambient temperature Ta (°C)
