Toshiba CRS08 Data Sheet

Summary

The CRS08 is a high-performance Schottky Barrier Rectifier ideal for switching mode power supply applications requiring compact components. This manual provides essential technical specifications, including detailed electrical characteristics, thermal performance data, and maximum ratings. Designed for integration into diverse general electronics systems—from personal equipment to industrial devices—it offers reliable conversion capabilities while ensuring optimal performance in limited space.

📄 Preview PAGE OF 5

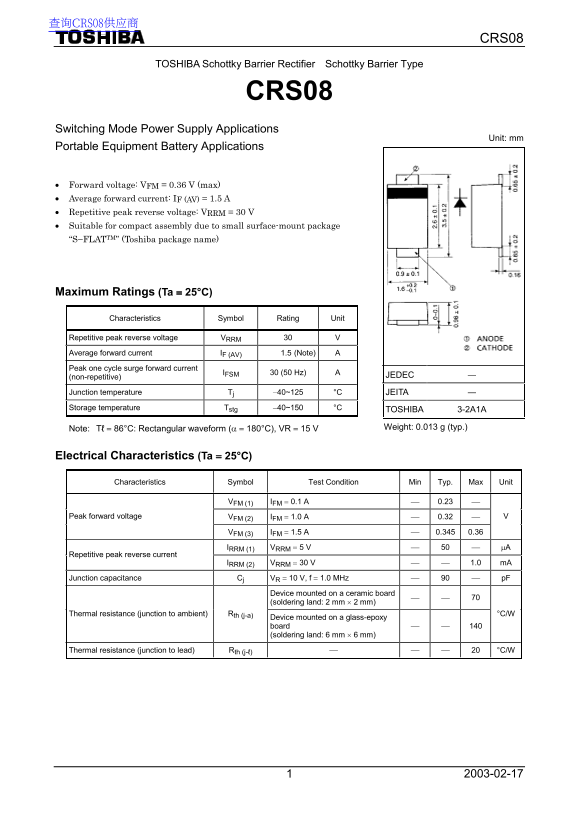

Page 1 Text Content

查询CRS08供应商

CRS08

TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type

CRS08

Switching Mode Power Supply Applications

Unit: mm

Portable Equipment Battery Applications

Forward voltage: VFM = 0.36 V (max) Average forward current: IF (AV) = 1.5 A Repetitive peak reverse voltage: VRRM = 30 V Suitable for compact assembly due to small surface-mount package “S−FLATTM” (Toshiba package name)

Maximum Ratings (Ta  25°C)

Characteristics Symbol Rating Unit

Repetitive peak reverse voltage VRRM 30 V Average forward current IF (AV) 1.5 (Note) Peak one cycle surge forward current

(non-repetitive) IFSM 30 (50 Hz) A JEDEC ―

Junction temperature Tj 40~125 °C JEITA ― Storage temperature Tstg 40~150 °C TOSHIBA 3-2A1A

Note: Tℓ  86°C: Rectangular waveform (  180°C), VR  15 V Weight: 0.013 g (typ.)

Electrical Characteristics (Ta  25°C)

Characteristics Symbol Test Condition Min Typ. Max Unit

VFM (1) IFM  0.1 A  0.23 VFM (2) IFM  1.0 A 0.32  Peak forward voltage

VFM (3) IFM  1.5 A 0.345 0.36

IRRM (1) VRRM  5 V 50  A

Repetitive peak reverse current

IRRM (2) VRRM  30 V 1.0 m A

Junction capacitance Cj VR  10 V, f  1.0 MHz 90  p F

Device mounted on a ceramic board (soldering land: 2 mm  2 mm)   70

Thermal resistance (junction to ambient) Rth (j-a) Device mounted on a glass-epoxy °C/W

board (soldering land: 6 mm  6 mm)

Thermal resistance (junction to lead) Rth (j-ℓ) 20 °C/W

Page Summary Contents For Toshiba CRS08 Data Sheet

Page 1 查询CRS08供应商 CRS08 TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CRS08 Switching Mode Power Supply Applications Unit: mm Portable Equipment Battery Applications Forward voltage: VFM = 0.36 V ...
Page 2 CRS08 Marking Following Indicates the Date of Manufacture Type Code Lot No. Month of January to December manufac- are denoted by letter A 7 8 9 ture to L respectively. Year of Last decimal digit of ma...
Page 3 CRS08 ax im um llo ab le le ad te pe ra tu re Ju nc tio ca pa ci ta nc p F Tℓ AX (° In st an ta ne ou fo rw ar cu rre nt (A i F – v F PF (AV) – IF (AV) Tj  125°C 180° 60° Rectangular waveform Conduct...
Page 4 CRS08 ev er se ur re nt (m A) IR – Tj (typ.) PR (AV) – VR (typ.) Rectangular Pulse test waveform 360°0° VR VR  30 V 3.2 Conduction angle DC Tj  125°C Junction temperature Tj (°C) Reverse voltage VR ...
Page 5 CRS08 000707EAARESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or fail...
