Toshiba TPCS8204 Data Sheet

Summary

This technical manual provides comprehensive specifications for the TPCS8204 N-Channel MOSFET transistor. Engineered with ultra-low drain-source ON resistance and a compact footprint, this component is ideal for powering portable electronics, including notebook PCs, lithium-ion battery applications, and various consumer devices. The guide details maximum electrical ratings, thermal dissipation curves, switching times, and operational guidelines necessary for reliable system design in general industrial and personal computing applications.

📄 Preview PAGE OF 7

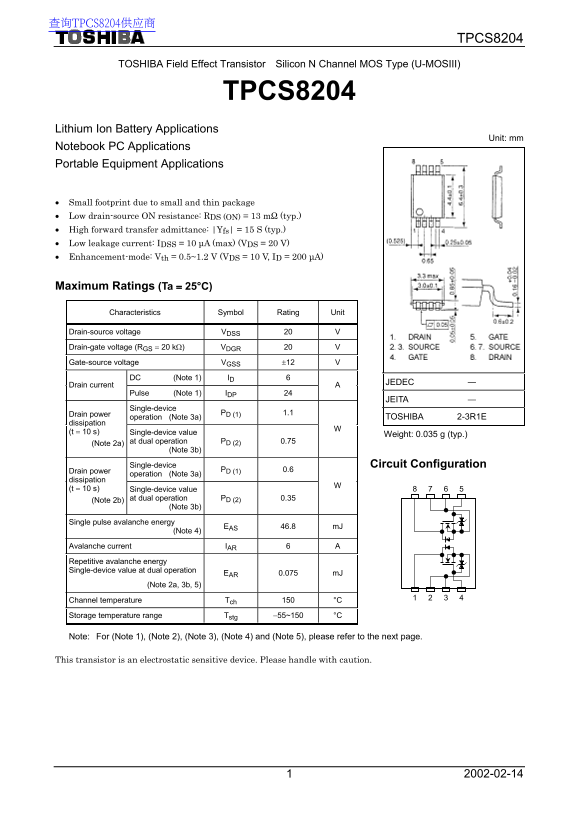

Page 1 Text Content

查询TPCS8204供应商

TPCS8204

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSIII)

TPCS8204

Lithium Ion Battery Applications

Unit: mm

Notebook PC Applications Portable Equipment Applications

• Small footprint due to small and thin package • Low drain-source ON resistance: RDS (ON) = 13 mΩ (typ.) • High forward transfer admittance: |Yfs| = 15 S (typ.) • Low leakage current: IDSS = 10 µA (max) (VDS = 20 V) • Enhancement-mode: Vth = 0.5~1.2 V (VDS = 10 V, ID = 200 µA)

Maximum Ratings (Ta = 25°C)

Characteristics Symbol Rating Unit

Drain-source voltage VDSS 20 V Drain-gate voltage (RGS = 20 kΩ) VDGR 20 V Gate-source voltage VGSS ±12 V

DC (Note 1) ID 6

JEDEC ―

Drain current

Pulse (Note 1) IDP 24

JEITA ―

Single-device

operation (Note 3a) PD (1) 1.1 Drain power TOSHIBA 2-3R1E

dissipation (t = 10 s) Single-device value

Weight: 0.035 g (typ.)

at dual operation PD (2) 0.75

(Note 2a)

(Note 3b)

Single-device Circuit Configuration

operation (Note 3a) PD (1) 0.6 Drain power

dissipation (t = 10 s) Single-device value 8 7 6 5

at dual operation PD (2) 0.35

(Note 2b)

(Note 3b)

Single pulse avalanche energy (Note 4) EAS 46.8 m J Avalanche current IAR 6 A Repetitive avalanche energy Single-device value at dual operation

EAR 0.075 m J

(Note 2a, 3b, 5)

Channel temperature Tch 150 °C Storage temperature range Tstg −55~150 °C

Note: For (Note 1), (Note 2), (Note 3), (Note 4) and (Note 5), please refer to the next page.

This transistor is an electrostatic sensitive device. Please handle with caution.

Page Summary Contents For Toshiba TPCS8204 Data Sheet

Page 1 查询TPCS8204供应商 TPCS8204 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSIII) TPCS8204 Lithium Ion Battery Applications Unit: mm Notebook PC Applications Portable Equipment Applications...
Page 2 TPCS8204 Thermal Characteristics Characteristics Symbol Max Unit Single-device operation (Note 3a) Rth (ch-a) (1) 114 Thermal resistance, channel to ambient (t = 10 s) (Note 2a) Single-device value at...
Page 3 TPCS8204 Electrical Characteristics (Ta = 25°C) Characteristics Symbol Test Condition Min Typ. Max Unit Gate leakage current IGSS VGS = ±10 V, VDS = 0 V   ±10 µA Drain cut-OFF current IDSS VDS = 20 ...
Page 4 TPCS8204 Fo rw ar tra ns fe r a dm itt an ce Y fs S) ra in ur re nt (A ra in ur re nt (A ID – VDS ID – VDS Common source Ta = 25°C Pulse test Common source Ta = 25°C, Pulse test VGS = 1.2 V 1.3 VGS =...
Page 5 TPCS8204 ra in -s ou rc re si st an ce ra in ow er is si pa tio (W ap ac ita nc (p F) (O RDS (ON) – Ta IDR – VDS Common source Pulse test VGS = 2 V 2.5 VGS = −1 V 1 0 10, 5, 3 Common source ID = 1.5, ...
Page 6 TPCS8204 ra in ur re nt (A rth − tw Device mounted on a glass-epoxy board (a) (Note 2a) (4) (1) Single-device operation (Note 3a) or al iz ed tr an si en t t he rm al im pe da nc (2) Single-device val...
Page 7 TPCS8204 000707EAARESTRICTIONS ON PRODUCT USE • TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or...
