Toshiba TPC6201 Data Manual

Summary

This comprehensive datasheet details the performance and specifications of the TPC6201 N-channel Power MOSFET transistor. Designed for demanding low-power applications, it features extremely low on-resistance (Rds(on)) and high switching efficiency, making it ideal for portable equipment, sophisticated notebook PC systems, and HDD motor drive circuits. This technical manual provides crucial data, including detailed electrical characteristics, thermal dissipation ratings, timing parameters, and maximum operating limits necessary for engineers who are designing sensitive and reliable power management solutions into consumer electronics.

📄 Preview PAGE OF 6

Page 1 Text Content

查询TPC6201供应商

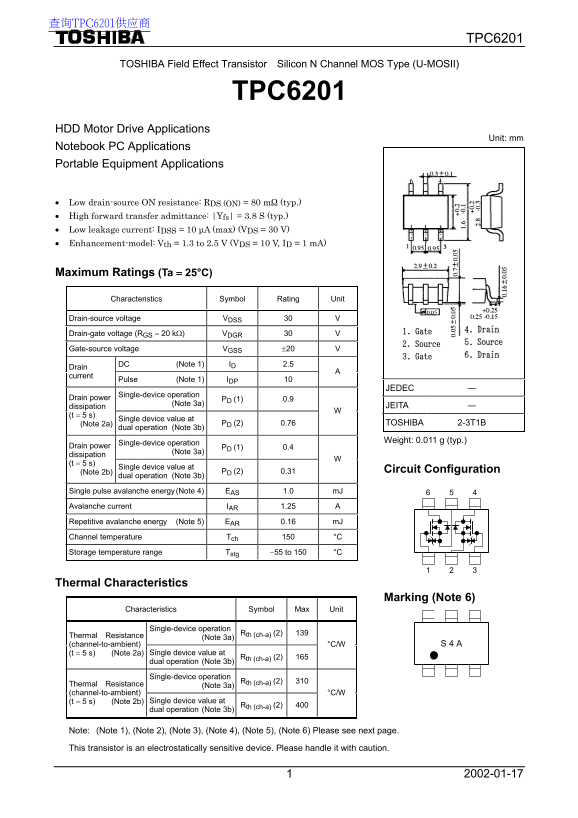

TPC6201

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSII)

TPC6201

HDD Motor Drive Applications

Unit: mm

Notebook PC Applications Portable Equipment Applications

Low drain-source ON resistance: RDS (ON) = 80 mΩ (typ.) High forward transfer admittance: |Yfs| = 3.8 S (typ.) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) Enhancement-model: Vth = 1.3 to 2.5 V (VDS = 10 V, ID = 1 m A)

Maximum Ratings (Ta  25°C)

Characteristics Symbol Rating Unit

Drain-source voltage VDSS 30 V Drain-gate voltage (RGS  20 k) VDGR 30 V Gate-source voltage VGSS 20 V

DC (Note 1) ID 2.5 Drain

current Pulse (Note 1) IDP 10

JEDEC ―

Single-device operation (Note 3a) PD (1) 0.9 Drain power

dissipation JEITA ―

(Note 2a) Single device value at TOSHIBA 2-3T1B

dual operation (Note 3b) PD (2) 0.76

Weight: 0.011 g (typ.)

Single-device operation (Note 3a) PD (1) 0.4 Drain power

dissipation (t  5 s)

(Note 2b) Single device value at Circuit Configuration

dual operation (Note 3b) PD (2) 0.31

Single pulse avalanche energy (Note 4) EAS 1.0 m J 6 4 Avalanche current IAR 1.25 A Repetitive avalanche energy (Note 5) EAR 0.16 m J Channel temperature Tch 150 °C Storage temperature range Tstg 55 to 150 °C

Thermal Characteristics

Marking (Note 6)

Characteristics Symbol Max Unit

Single-device operation

139Thermal Resistance

(Note 3a) Rth (ch-a) (2)

(channel-to-ambient) °C/W S 4 A

(t  5 s) (Note 2a) Single device value at

dual operation (Note 3b) Rth (ch-a) (2) Single-device operation

310Thermal Resistance

(Note 3a) Rth (ch-a) (2)

(channel-to-ambient) °C/W

(t  5 s) (Note 2b) Single device value at

dual operation (Note 3b) Rth (ch-a) (2)

Note: (Note 1), (Note 2), (Note 3), (Note 4), (Note 5), (Note 6) Please see next page.

This transistor is an electrostatically sensitive device. Please handle it with caution.
