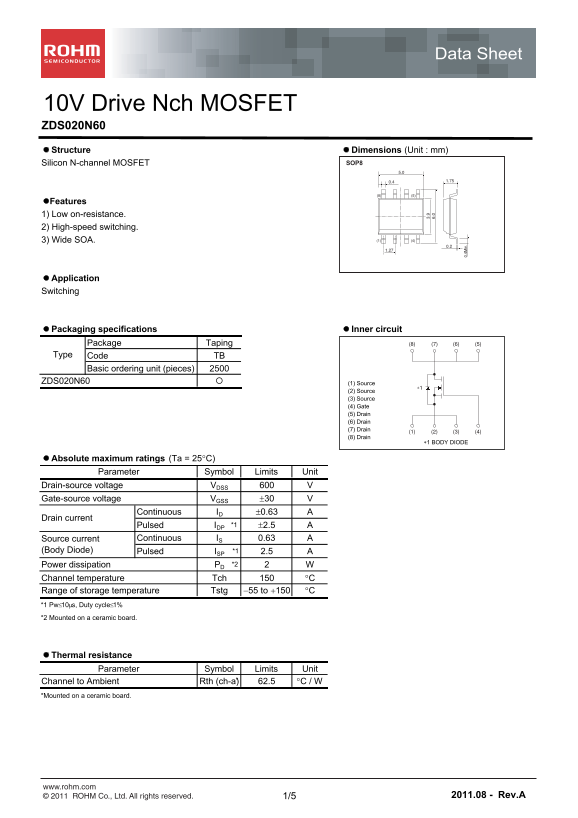

Data Sheet
10V Drive Nch MOSFET ZDS020N60 Structure Dimensions (Unit : mm)
Silicon N-channel MOSFET SOP8
Features 1) Low on-resistance. 2) High-speed switching.
3) Wide SOA. (1) (4)
Application Switching
Packaging specifications Inner circuit
Package Taping (8) (7) (6) (5)
Type Code TB Basic ordering unit (pieces) ZDS020N60 (1) Source
(2) Source (3) Source (4) Gate (5) Drain (6) Drain (7) Drain
(8) Drain
1 BODY DIODE
Absolute maximum ratings (Ta = 25C)
Parameter Symbol Limits Unit
Drain-source voltage VDSS Gate-source voltage VGSS 30
Continuous ID 0.63
Drain current
Pulsed IDP *1 2.5
Source current Continuous IS 0.63
(Body Diode) Pulsed ISP *1 2.5
Power dissipation PD *2
Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.
Thermal resistance
Parameter Symbol Limits Unit
Channel to Ambient Rth (ch-a) 62.5 C / W *Mounted on a ceramic board.
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved. 1/5 2011.08 - Rev.A
