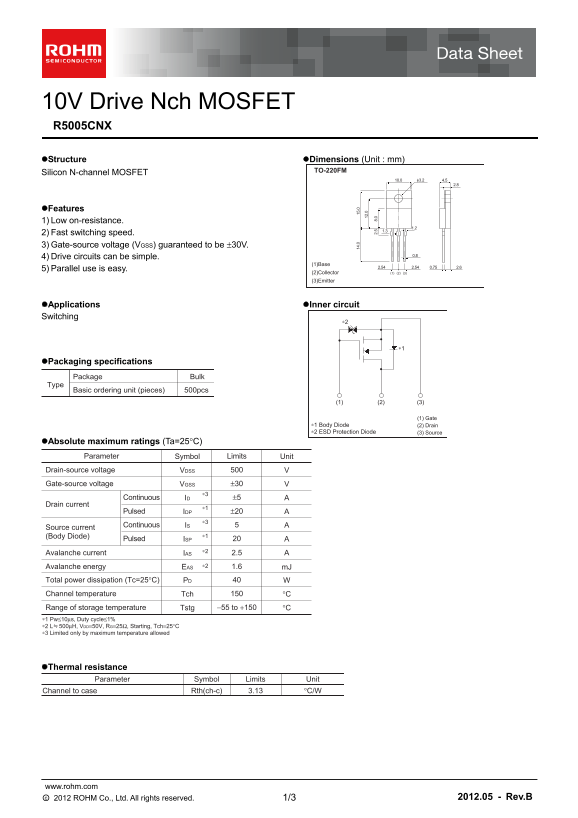

10V Drive Nch MOSFET R5005CNX Structure Dimensions (Unit : mm)

TO-220FM

Silicon N-channel MOSFET

Features 1) Low on-resistance.

2) Fast switching speed. 3) Gate-source voltage (VGSS) guaranteed to be 30V.

4) Drive circuits can be simple.

(1)Base

5) Parallel use is easy.

(2)Collector (2) (3)(1)

(3)Emitter

Applications Inner circuit Switching

Packaging specifications

Package Bulk 2. 8.

Type Basic ordering unit (pieces) 500pcs

(1) Gate

∗1 Body Diode (2) Drain ∗2 ESD Protection Diode (3) Source

Absolute maximum ratings (Ta=25C)

Parameter Symbol Limits Unit

Drain-source voltage VDSS

Gate-source voltage VGSS ±30

Continuous ±5ID

Drain current

Pulsed IDP A±20

Continuous

Source current

(Body Diode) ∗1

Pulsed ISP

Avalanche current IAS 2.5

Avalanche energy EAS ∗2 1.6 m J

Total power dissipation (Tc=25°C) PD

Channel temperature Tch °C

Range of storage temperature Tstg °C−55 to +150 ∗1 Pw≤10μs, Duty cycle≤1% ∗2 L 500μH, VDD=50V, RG=25Ω, Starting, Tch=25°C ∗3 Limited only by maximum temperature allowed

Thermal resistance

Parameter Symbol Limits Unit

Channel to case 3.13 °C/WRth(ch-c)
