Discover high-reliability Thick Film Chip Resistors in the MCR Series, engineered for applications ranging from consumer electronics to rigorous automotive systems (AEC-Q200 compliant). This manual provides comprehensive technical specifications covering a complete size spectrum, including ultra-small 01005 packages up to 2512. It details resistance ranges, tolerance options, and compliance data for designers requiring high-quality components for audio-visual equipment, office automation, or general purpose electronic devices.

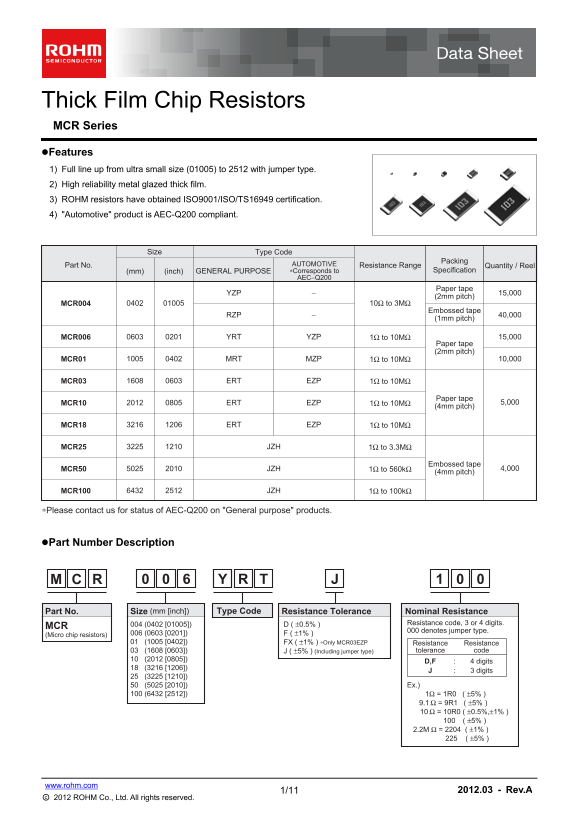

Page 1 Text Content
Thick Film Chip Resistors MCR Series Features 1) Full line up from ultra small size (01005) to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/ISO/TS16949 certification. 4) "Automotive" product is AEC-Q200 compliant.
Type Code Size
Packing
Part No. AUTOMOTIVE Resistance Range Quantity / Reel
(mm) (inch) GENERAL PURPOSE ∗Corresponds to Specification
AEC−Q200
Paper tape
YZP 15,000
(2mm pitch)
MCR004 10Ω to 3MΩ
Embossed tape
RZP 40,000
(1mm pitch)
MCR006 YRT YZP 1Ω to 10MΩ 15,000
Paper tape (2mm pitch)
MCR01 MRT MZP 1Ω to 10MΩ 10,000
MCR03 ERT EZP 1Ω to 10MΩ
Paper tape
MCR10 ERT EZP 1Ω to 10MΩ 5,000
(4mm pitch)
MCR18 ERT EZP 1Ω to 10MΩ
MCR25 JZH 1Ω to 3.3MΩ
Embossed tape
MCR50 JZH 1Ω to 560kΩ 4,000
(4mm pitch)
MCR100 JZH 1Ω to 100kΩ
∗Please contact us for status of AEC-Q200 on "General purpose" products.
Part Number Description
Part No. Size (mm [inch]) Type Code Resistance Tolerance Nominal Resistance
004 (0402 [01005]) D ( ±0.5% ) Resistance code, 3 or 4 digits.
000 denotes jumper type.
(Micro chip resistors) 006 (0603 [0201]) F ( ±1% ) 01 (1005 [0402]) FX ( ±1% ) ∗Only MCR03EZP Resistance Resistance
03 (1608 [0603]) J ( ±5% ) (Including jumper type) tolerance code
D,F 4 digits
3 digits
50 (5025 [2010]) Ex.)
www.rohm.com
1/11 2012.03 - Rev.A
○c 2012 ROHM Co., Ltd. All rights reserved.
