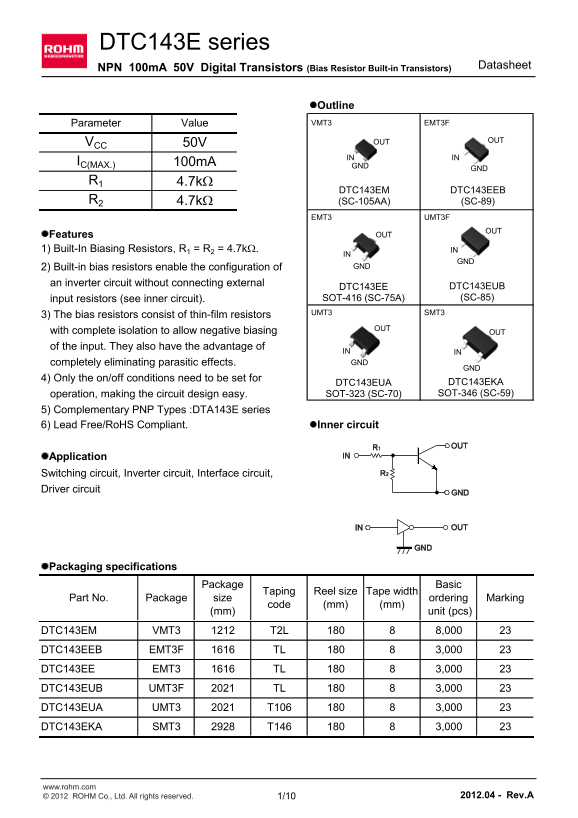

DTC143E series

Datasheet

NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

VCC OUT OUT

IN IN

IC(MAX.) 100m A

DTC143EM DTC143EEB

R2 4.7k W (SC-105AA) (SC-89)

EMT3 UMT3F

l Features OUT

1) Built-In Biasing Resistors, R1 = R2 = 4.7k W. IN

2) Built-in bias resistors enable the configuration of GND

an inverter circuit without connecting external

DTC143EE DTC143EUB input resistors (see inner circuit). SOT-416 (SC-75A) (SC-85)

UMT3 SMT3

3) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing OUT of the input. They also have the advantage of

IN IN completely eliminating parasitic effects. GND

4) Only the on/off conditions need to be set for

DTC143EUA DTC143EKA operation, making the circuit design easy. SOT-323 (SC-70) SOT-346 (SC-59)

5) Complementary PNP Types :DTA143E series

6) Lead Free/Ro HS Compliant. l Inner circuit

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTC143EM VMT3 T2L 8,000 DTC143EEB EMT3F TL 3,000 DTC143EE EMT3 TL 3,000 DTC143EUB UMT3F TL 3,000 DTC143EUA UMT3 T106 3,000 DTC143EKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/10 2012.04 - Rev.A

Page Summary Contents For ROHM DTC143EUA User Guide

Page 1 DTC143E series Datasheet NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F VCC OUT OUT IN IN IC(MAX.) 100m A DTC143EM DTC143EEB R2 4.7k W (SC...
Page 2 Data Sheet DTC143E series l Absolute maximum ratings (Ta = 25C) Parameter Symbol Values Unit Supply voltage VCC Input voltage VIN -10 to +30 Output current IO m A *1 Collector current IC(MAX.) m A DT...
Page 3 Data Sheet DTC143E series IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF characteristics) O...
Page 4 Data Sheet DTC143E series l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current OUTPUT CURRENT : IO [A] www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 4/10 201...
Page 5 Data Sheet DTC143E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 6 Data Sheet DTC143E series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 7 Data Sheet DTC143E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 8 Data Sheet DTC143E series l Dimensions (Unit : mm) UMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.85 1.05 0.033 0.041 HE 2.00 2.20 0.079 0.087 Lp 0.43 0.63 0.017 0.025 MI...
Page 9 Data Sheet DTC143E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 10 Data Sheet DTC143E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0...
Page 11 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
