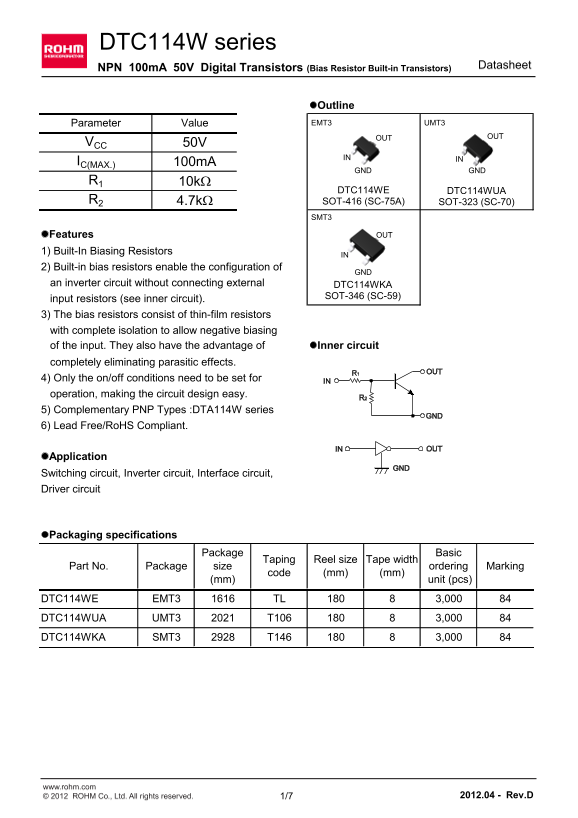

DTC114W series

Datasheet

NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value EMT3 UMT3

OUT OUT

VCC 50V

IN IN

IC(MAX.) 100m A

GND GND

DTC114WE DTC114WUA

R2 4.7k W SOT-416 (SC-75A) SOT-323 (SC-70)

l Features OUT

1) Built-In Biasing Resistors

2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external DTC114WKA

SOT-346 (SC-59)

input resistors (see inner circuit). 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of l Inner circuit completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary PNP Types :DTA114W series 6) Lead Free/Ro HS Compliant.

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTC114WE EMT3 TL 3,000 DTC114WUA UMT3 T106 3,000 DTC114WKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/7 2012.04 - Rev.D

Page Summary Contents For ROHM DTC114WUA User Guide

Page 1 DTC114W series Datasheet NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value EMT3 UMT3 OUT OUT VCC 50V IN IN IC(MAX.) 100m A GND GND DTC114WE DTC114WUA R2...
Page 2 Data Sheet DTC114W series l Absolute maximum ratings (Ta = 25°C) Parameter Symbol Values Unit Supply voltage VCC Input voltage VIN -10 to +30 Output current IO m A *1 Collector current IC(MAX.) m A Po...
Page 3 Data Sheet DTC114W series IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF characteristics) O...
Page 4 Data Sheet DTC114W series l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current OUTPUT CURRENT : IO [A] www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 4/7 2012...
Page 5 Data Sheet DTC114W series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 6 Data Sheet DTC114W series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 7 Data Sheet DTC114W series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0...
Page 8 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
