The VT6J1 is a compact, low voltage drive P-channel MOSFET engineered for efficient switching in demanding electronic applications. It delivers superior performance with low on-resistance and minimal power consumption, making it ideal for use in audio-visual equipment, office automation, and communication devices. This comprehensive datasheet provides engineers with all necessary technical specifications, including absolute maximum ratings, detailed electrical characteristics (like $R_{DS(on)}$, leakage), and application curves crucial for reliable circuit design.

📄 Preview ‹ PAGE OF 6 ›

‹

›

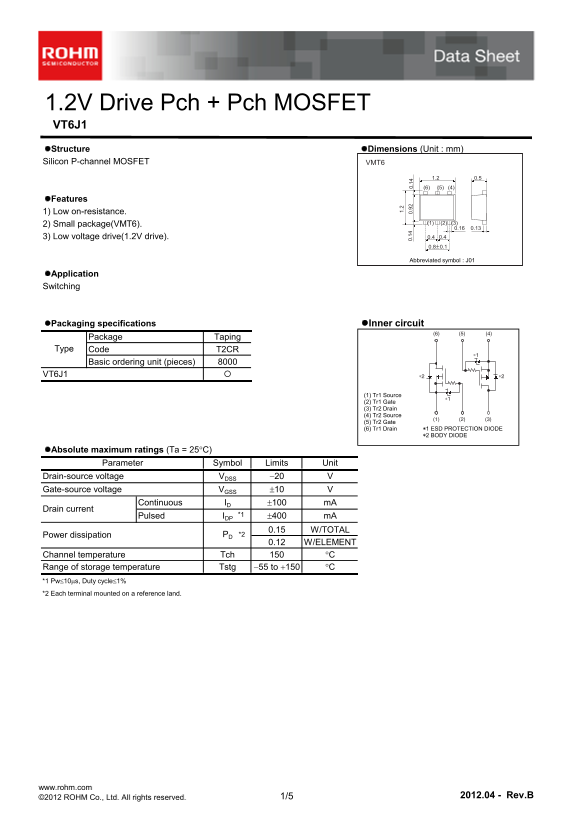

Page 1 Text Content

1.2V Drive Pch + Pch MOSFET VT6J1 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET VMT6

Features 1) Low on-resistance.

2) Small package(VMT6). (1) (2) (3)

3) Low voltage drive(1.2V drive). 0.4 0.4 0.8±0.1

Abbreviated symbol : J01

Application Switching

Packaging specifications Inner circuit

Package Taping

Type Code T2CR

Basic ordering unit (pieces)

VT6J1 ∗2 ∗2

(1) Tr1 Source

(2) Tr1 Gate 1.

(3) Tr2 Drain 0. 0.

(4) Tr2 Source

(5) Tr2 Gate (6) Tr1 Drain *1 ESD PROTECTION DIODE

*2 BODY DIODE

Absolute maximum ratings (Ta = 25C)

Parameter Symbol Limits Unit

Drain-source voltage VDSS 20 Gate-source voltage VGSS 10 Continuous ID 100 m A

Drain current

Pulsed IDP *1 400 m A

0.15 W/TOTAL PDPower dissipation *2 0.12 W/ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Each terminal mounted on a reference land.

www.rohm.com

Page Summary Contents For ROHM VT6J1 User Guide

Page 1 1.2V Drive Pch + Pch MOSFET VT6J1 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET VMT6 Features 1) Low on-resistance. 2) Small package(VMT6). (1) (2) (3) 3) Low voltage drive(1.2V drive)....

Page 2 Data Sheet VT6J1 Electrical characteristics (Ta = 25C) <It is the same ratings for Tr1 and Tr2.> Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 10 A VGS=10V, VDS=0...

Page 3 Data Sheet VT6J1 IC IN -S -S IC IN -S -S IS IS IN −I [A Electrical characteristic curves Ta=25°C VDS= −10V Pulsed Pulsed VGS= −1.5V 0.1 Ta= 125°C VGS= −4.5V Ta= 75°C VGS= −4.5V VGS= −4.0V Ta= 25°C VG...

Page 4 Data Sheet VT6J1 IT IN IM ns IT |Y fs [S VDS= −10V VGS=0V Ta=25°C Pulsed Pulsed Pulsed ID= −0.001A 0.1 0.1 Ta= 125°C ID= −0.1A Ta= 125°C Ta= 75°C Ta= 75°C Ta= 25°C Ta= 25°C Ta= -25°C Ta= -25°C IT IN [...

Page 5 Data Sheet VT6J1 Measurement circuits Pulse width ID VGS VDS 10% VGS 50% 50% RG VDD trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2 Switching Waveforms www.rohm.com © 2...

Page 6 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
