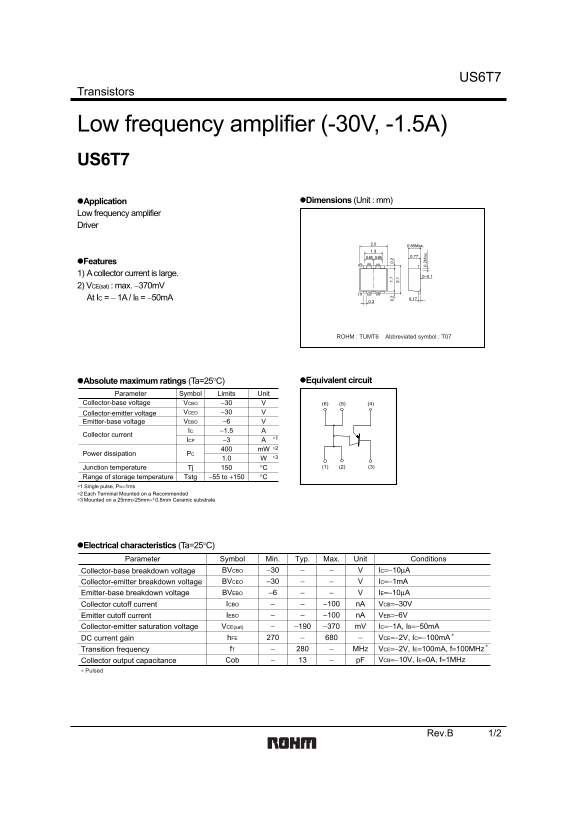

US6T7
Transistors
Low frequency amplifier (-30V, -1.5A) US6T7
Application Dimensions (Unit : mm)
Low frequency amplifier Driver
Features 1) A collector current is large. 2) VCE(sat) : max. −370m V At IC = − 1A / IB = −50m A
ROHM : TUMT6 Abbreviated symbol : T07
Absolute maximum ratings (Ta=25°C) Equivalent circuit
Parameter Symbol Limits Unit
Collector-base voltage VCBO −30 (4)(5)(6)
Collector-emitter voltage VCEO −30 Emitter-base voltage VEBO −6
0. 2M ax
IC −1.5
Collector current
ICP −3
Power dissipation PC
Junction temperature Tj °C (1) (2) (3)
Range of storage temperature Tstg −55 to +150 °C ∗1 Single pulse, PW=1ms ∗2 Each Terminal Mounted on a Recommended ∗3 Mounted on a 25mm×25mm× 0.8mm Ceramic substratet
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO −30 IC=−10µA Collector-emitter breakdown voltage BVCEO −30 IC=−1m A Emitter-base breakdown voltage BVEBO −6 IE=−10µA
Collector cutoff current ICBO −100 n A VCB=−30V
Emitter cutoff current IEBO −100 n A VEB=−6V Collector-emitter saturation voltage VCE(sat) −190 −370 m V IC=−1A, IB=−50m A
DC current gain h FE VCE=−2V, IC=−100m A Transition frequency f T MHz VCE=−2V, IE=100m A, f=100MHz
Collector output capacitance Cob p F VCB=−10V, IE=0A, f=1MHz
∗ Pulsed
Rev.B 1/2
