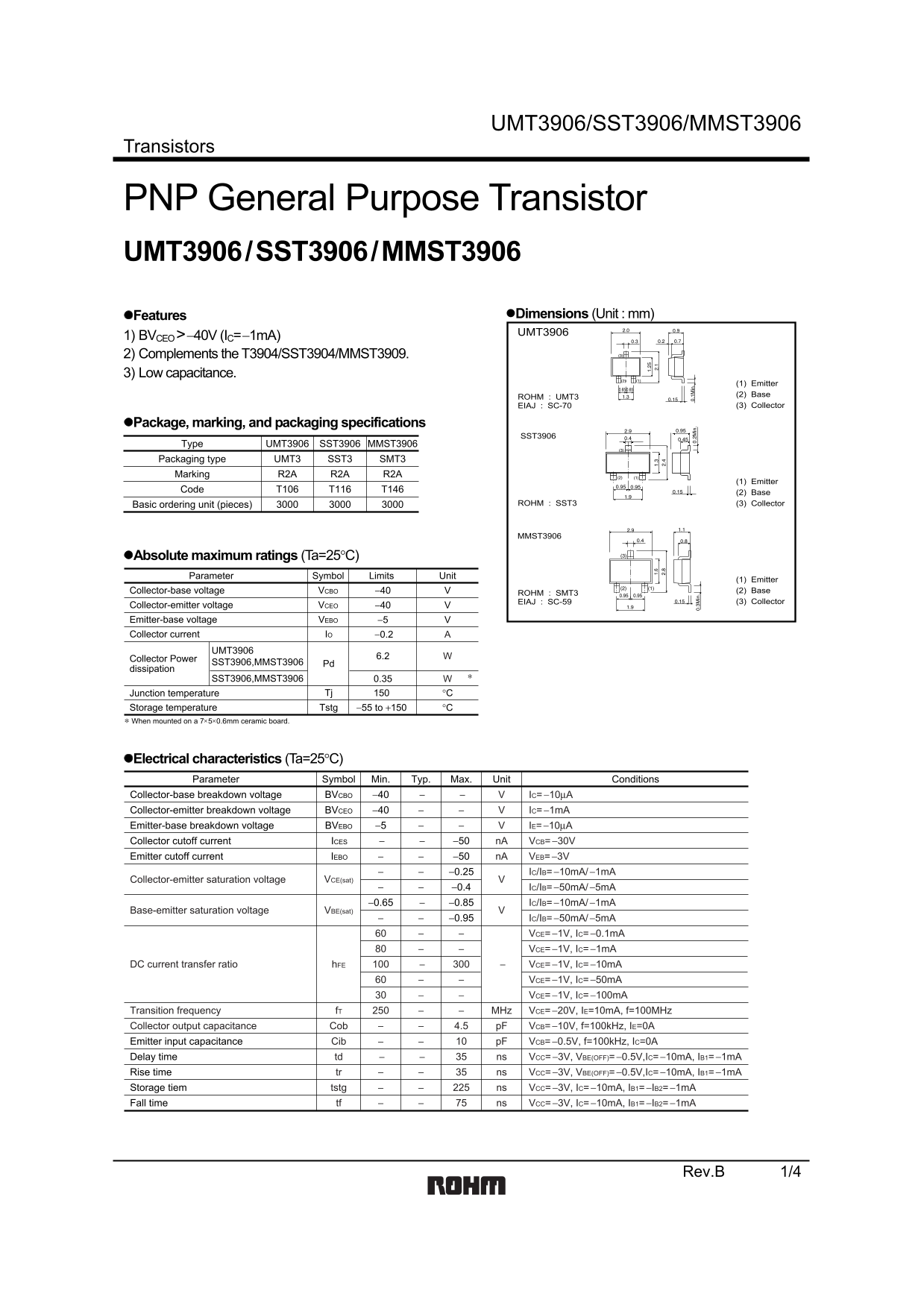

Page 1 Text Content
UMT3906/SST3906/MMST3906
Transistors
PNP General Purpose Transistor UMT3906 / SST3906 / MMST3906
Features Dimensions (Unit : mm) UMT3906
1) BVCEO > −40V (IC= −1m A) 2) Complements the T3904/SST3904/MMST3909. 3) Low capacitance.
(1) Emitter ROHM : UMT3 (2) Base EIAJ : SC-70 (3) Collector
Package, marking, and packaging specifications
SST3906
Type UMT3906 SST3906 MMST3906 Packaging type UMT3 SST3 SMT3 Marking R2A R2A R2A
(1) Emitter
Code T106 T116 T146 (2) Base
Basic ordering unit (pieces) ROHM : SST3 (3) Collector
MMST3906
Absolute maximum ratings (Ta=25°C) Parameter Symbol Limits Unit
(1) Emitter Collector-base voltage VCBO −40 ROHM : SMT3 (2) Base EIAJ : SC-59 (3) Collector
Collector-emitter voltage VCEO −40 Emitter-base voltage VEBO −5 IO −0.2Collector current
UMT3906
Collector Power 6.2
SST3906,MMST3906 Pd
dissipation
SST3906,MMST3906 0.35 ∗W
Junction temperature Tj °C
Storage temperature Tstg −55 to +150 °C ∗ When mounted on a 7 5 0.6mm ceramic board.+
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Max.Typ. Unit Conditions
Collector-base breakdown voltage BVCBO −40 IC= −10µA Collector-emitter breakdown voltage BVCEO −40 IC= −1m A Emitter-base breakdown voltage BVEBO −5 IE= −10µA Collector cutoff current ICES −50 n A VCB= −30V Emitter cutoff current IEBO −50 n A VEB= −3V
−0.25 IC/IB= −10m A/ −1m A
Collector-emitter saturation voltage VCE(sat)
−0.4 IC/IB= −50m A/ −5m A −0.65 −0.85 IC/IB= −10m A/ −1m A
Base-emitter saturation voltage VBE(sat)
−0.95 IC/IB= −50m A/ −5m A VCE= −1V, IC= −0.1m A VCE= −1V, IC= −1m A
DC current transfer ratio h FE VCE= −1V, IC= −10m A
VCE= −1V, IC= −50m A VCE= −1V, IC= −100m A
Transition frequency f T MHz VCE= −20V, IE=10m A, f=100MHz
Collector output capacitance Cob 4.5 p F VCB= −10V, f=100k Hz, IE=0A
Emitter input capacitance Cib p F VCB= −0.5V, f=100k Hz, IC=0A Delay time td ns VCC= −3V, VBE(OFF)= −0.5V,IC= −10m A, IB1= −1m A Rise time tr ns VCC= −3V, VBE(OFF)= −0.5V,IC= −10m A, IB1= −1m A Storage tiem tstg ns VCC= −3V, IC= −10m A, IB1= −IB2= −1m A Fall time tf ns VCC= −3V, IC= −10m A, IB1= −IB2= −1m A
Rev.B 1/4
