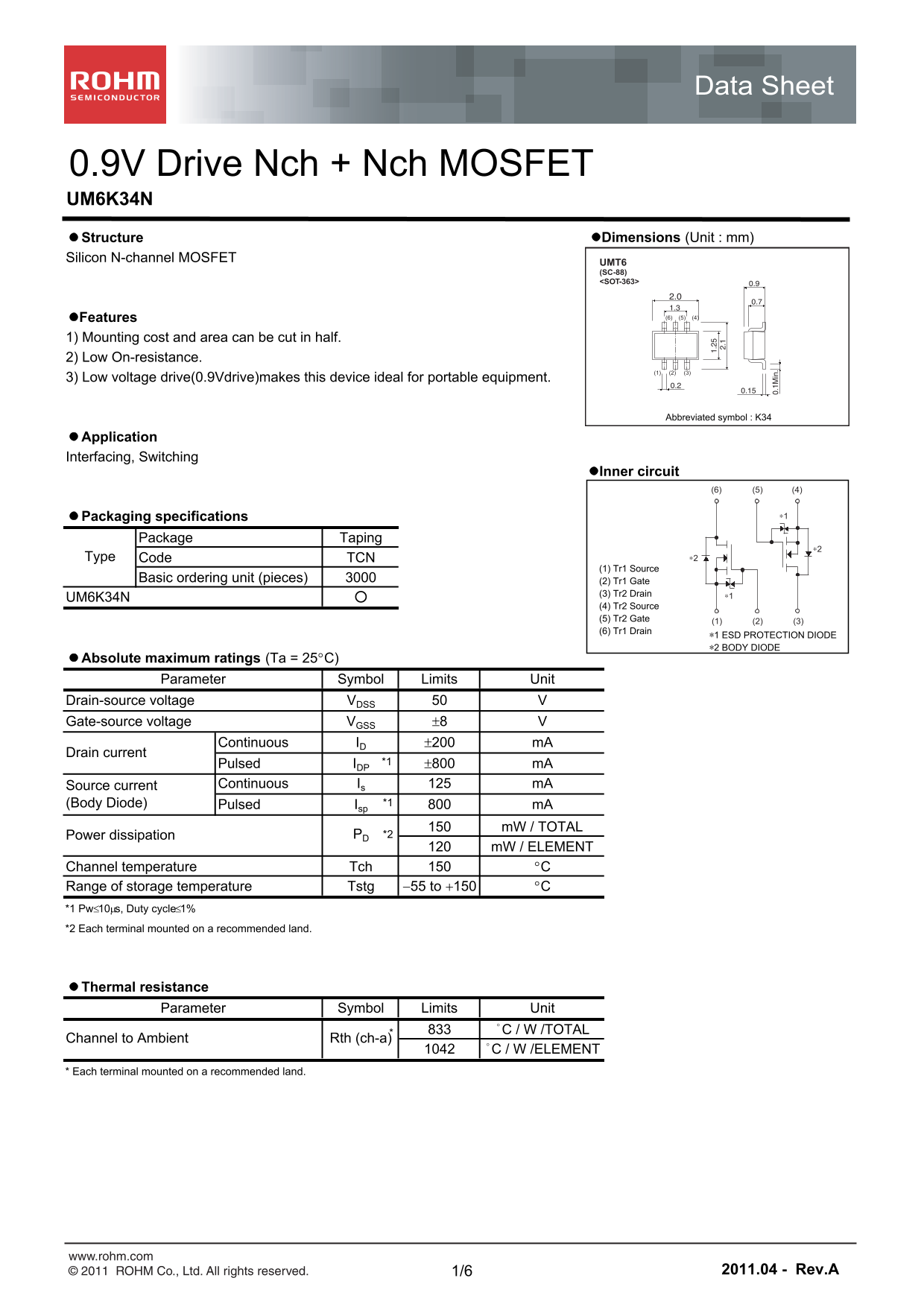

Page 1 Text Content

Data Sheet

0.9V Drive Nch + Nch MOSFET UM6K34N

Structure Dimensions (Unit : mm)

Silicon N-channel MOSFET

UMT6 (SC-88) <SOT-363>

Features (6) (5) (4)

1) Mounting cost and area can be cut in half. 2) Low On-resistance.

3) Low voltage drive(0.9Vdrive)makes this device ideal for portable equipment.

Abbreviated symbol : K34

Application Interfacing, Switching

Inner circuit

Packaging specifications ∗1

Package Taping

Type Code TCN ∗2

(1) Tr1 Source

Basic ordering unit (pieces) (2) Tr1 Gate

(3) Tr2 Drain ∗1

UM6K34N

(4) Tr2 Source (5) Tr2 Gate (1) (2) (3) (6) Tr1 Drain

∗1 ESD PROTECTION DIODE ∗2 BODY DIODE

Absolute maximum ratings (Ta = 25C)

Parameter Symbol Limits Unit

Drain-source voltage VDSS

Gate-source voltage VGSS 8 Continuous ID 200 m A

Drain current

Pulsed IDP *1 800 m A

Source current Continuous Is m A

(Body Diode) Pulsed Isp *1 m A

m W / TOTAL

PDPower dissipation *2

m W / ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Each terminal mounted on a recommended land.

Thermal resistance

Parameter Symbol Limits Unit

˚C / W /TOTAL

Channel to Ambient Rth (ch-a)

˚C / W /ELEMENT

* Each terminal mounted on a recommended land.

www.rohm.com
