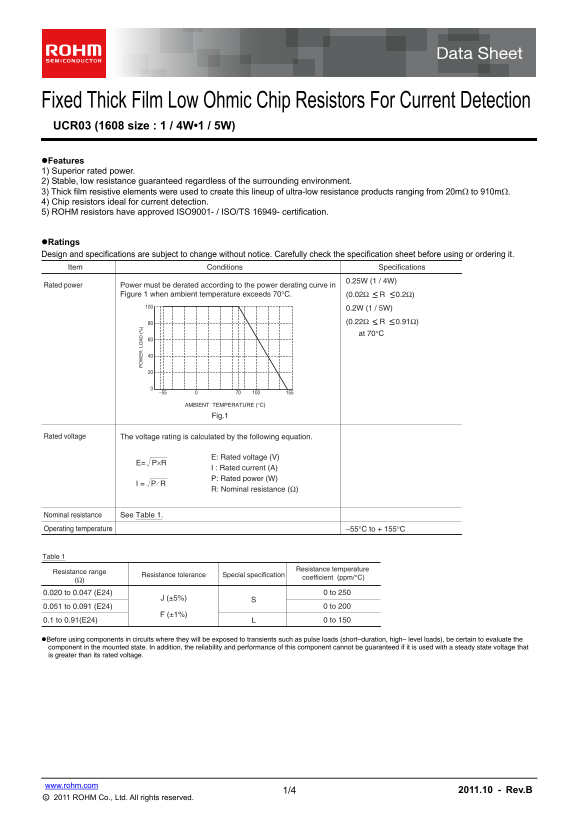

Fixed Thick Film Low Ohmic Chip Resistors For Current Detection UCR03 (1608 size : 1 / 4W•1 / 5W)
Features 1) Superior rated power. 2) Stable, low resistance guaranteed regardless of the surrounding environment. 3) Thick film resistive elements were used to create this lineup of ultra-low resistance products ranging from 20m to 910m. 4) Chip resistors ideal for current detection. 5) ROHM resistors have approved ISO9001- / ISO/TS 16949- certification.
Ratings Design and specifications are subject to change without notice. Carefully check the specification sheet before using or ordering it. Item Conditions Specifications
Rated power Power must be derated according to the power derating curve in Figure 1 when ambient temperature exceeds 70°C. (0.02Ω R 0.2Ω)
0.2W (1 / 5W) (0.22Ω R 0.91Ω) at 70°C
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage The voltage rating is calculated by the following equation.
E: Rated voltage (V)
I : Rated current (A) P: Rated power (W)
R: Nominal resistance (Ω)
Nominal resistance See Table 1.
Operating temperature −55°C to + 155°C
Table 1
Resistance temperature
Resistance tolerance Special specification Resistance range
coefficient (ppm/°C)
0.020 to 0.047 (E24) 0 to 250
0.051 to 0.091 (E24) 0 to 200
0.1 to 0.91(E24) 0 to 150
Before using components in circuits where they will be exposed to transients such as pulse loads (short–duration, high– level loads), be certain to evaluate the component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it is used with a steady state voltage that is greater than its rated voltage.
www.rohm.com
1/4 2011.10 - Rev.B
○c 2011 ROHM Co., Ltd. All rights reserved.
