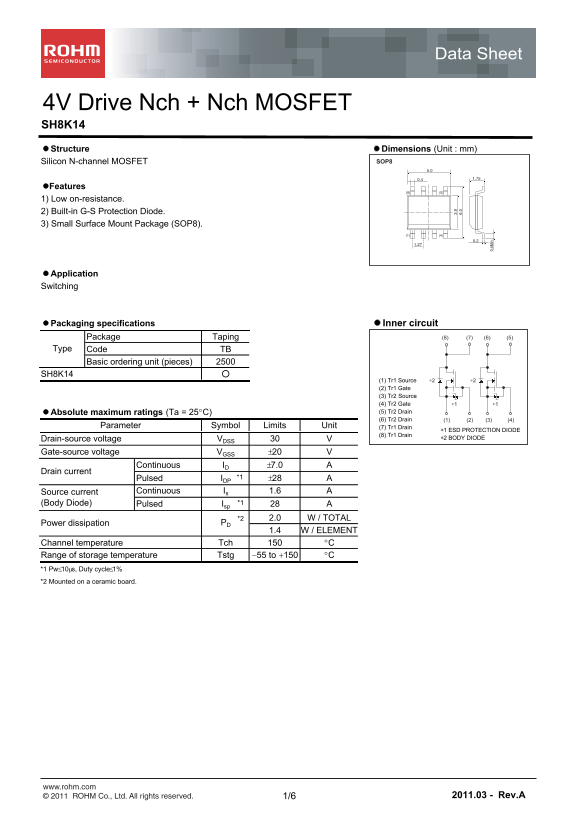

Data Sheet

4V Drive Nch + Nch MOSFET SH8K14 Structure Dimensions (Unit : mm)

Silicon N-channel MOSFET SOP8

Features

1) Low on-resistance. 2) Built-in G-S Protection Diode. 3) Small Surface Mount Package (SOP8).

Application Switching

Packaging specifications Inner circuit

Package Taping (8) (7) (6) (5)

Type Code TB Basic ordering unit (pieces) SH8K14

(1) Tr1 Source ∗2 ∗2

(2) Tr1 Gate (3) Tr2 Source (4) Tr2 Gate ∗1 ∗1 Absolute maximum ratings (Ta = 25C) (5) Tr2 Drain (6) Tr2 Drain (1) (2) (3) (4)

Parameter Symbol Limits Unit (7) Tr1 Drain

∗1 ESD PROTECTION DIODE

(8) Tr1 Drain

Drain-source voltage VDSS ∗2 BODY DIODE

Gate-source voltage VGSS 20 Continuous ID 7.0

Drain current

Pulsed IDP *1 28

Source current Continuous Is 1.6 (Body Diode) Pulsed Isp *1 *2 2.0 W / TOTAL

Power dissipation PD

1.4 W / ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.
