1.5V Drive Pch MOSFET RZR020P01

Structure Dimensions (Unit : mm)

Silicon P-channel MOSFET

TSMT3

1.0MAX

Features (3)

1) Low on-resistance. 0~0.1

2) Built-in G-S Protection Diode.

3) Small and Surface Mount Package (TSMT3).

Each lead has same dimensions(1) Gate

4) Low voltage drive (1.5V). (2) Source

Abbreviated symbol : ZE

(3) Drain

Applications Inner circuit Switching

Packaging specifications

Package Taping ∗2

Type Code TL

Basic ordering unit (pieces) ∗1

RZR020P01 1. 2.

(2) (1) Gate (2) Source

∗1 ESD PROTECTION DIODE

∗2 BODY DIODE (3) Drain

Absolute maximum ratings (Ta=25°C) Parameter Symbol Limits Unit

Drain-source voltage −12 VVDSS

Gate-source voltage ±10 VVGSS

Continuous ±2 AID

Drain current

Pulsed ±6 AIDP Source current Continuous −0.8 AIS

(Body diode) ∗1

Pulsed −6 AISP

Total power dissipation 1.0 WPD

Channel temperature °CTch

Range of storage temperature −55 to +150 °CTstg

∗1 Pw≤10µs, Duty cycle≤1% ∗2 When mounted on a ceramic board.

Thermal resistance Parameter Symbol Limits Unit Channel to ambient °C / WRth (ch-a) ∗ When mounted on a ceramic board.

Page Summary Contents For ROHM RZR020P01 User Guide

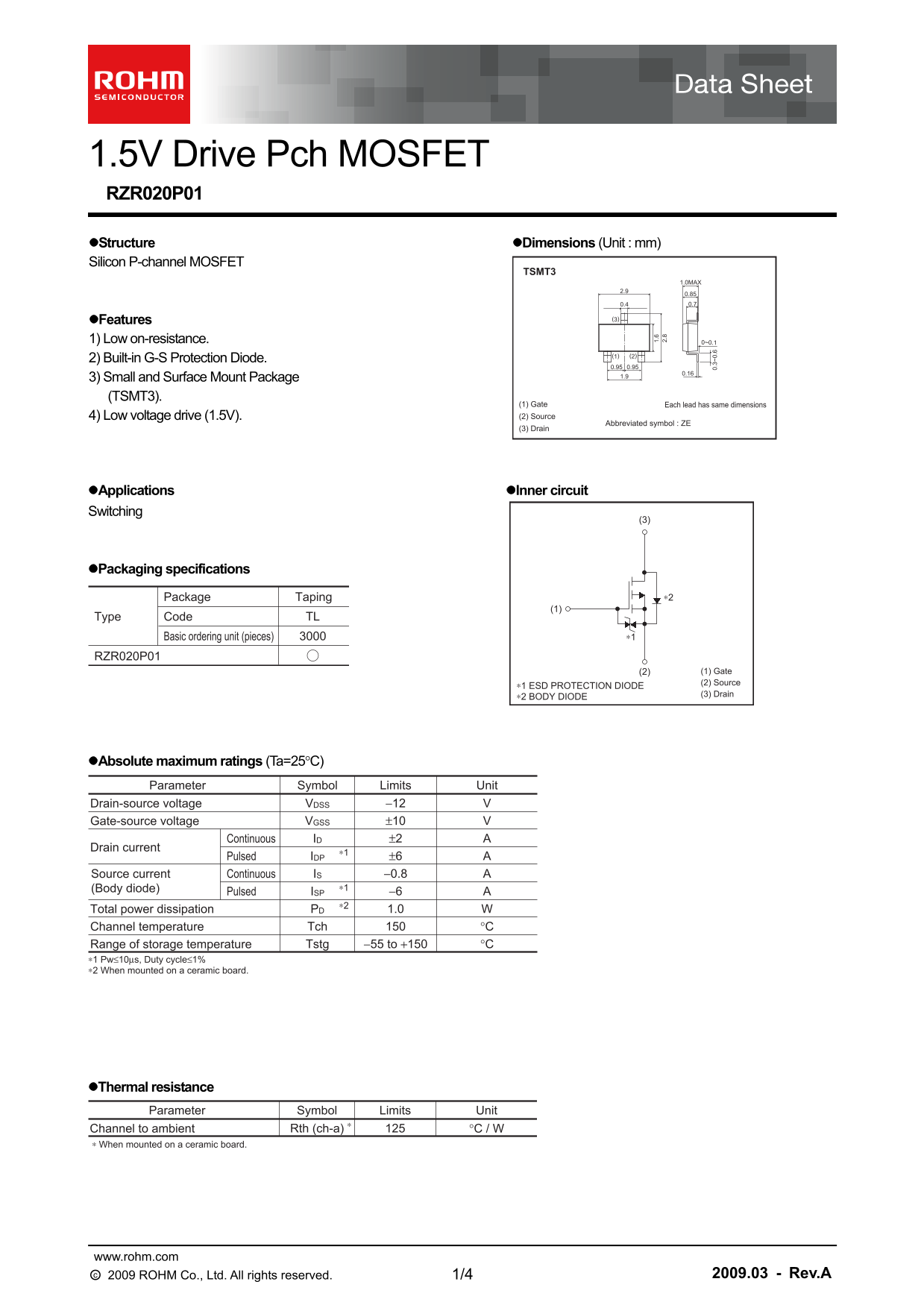

Page 1 1.5V Drive Pch MOSFET RZR020P01 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET TSMT3 1.0MAX Features (3) 1) Low on-resistance. 0~0.1 2) Built-in G-S Protection Diode. 3) Small and Surface M...

Page 2 RZR020P01 Data Sheet Electrical characteristics (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS ±10 µA VGS=±10V, VDS=0V Drain-source breakdown voltage V(BR) DSS −12 ...

Page 3 RZR020P01 Data Sheet Electrical characteristics curves ST AT IC AI -S -S TA TE ST AT IC AI -S -S TA TE ES IS TA : R S( on )[m ES IS TA : R S( on )[m AI EN : - [A Ta=25°C Ta=25°C VDS= -6V 3.5 Pulsed-10...

Page 4 RZR020P01 Data Sheet VGS=0V Ta=25°C Ta=25°C VDD= -6V AT E- SO VO LT AG : - V] EV ER SE AI EN : - Is [A Pulsed Pulsed td(off) VGS=-4.5V RG=10Ω Pulsed tf ID= -1A ID= -2A Ta=125°C 0.1 Ta=75°C Ta=25°C tr ...

Page 5 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
