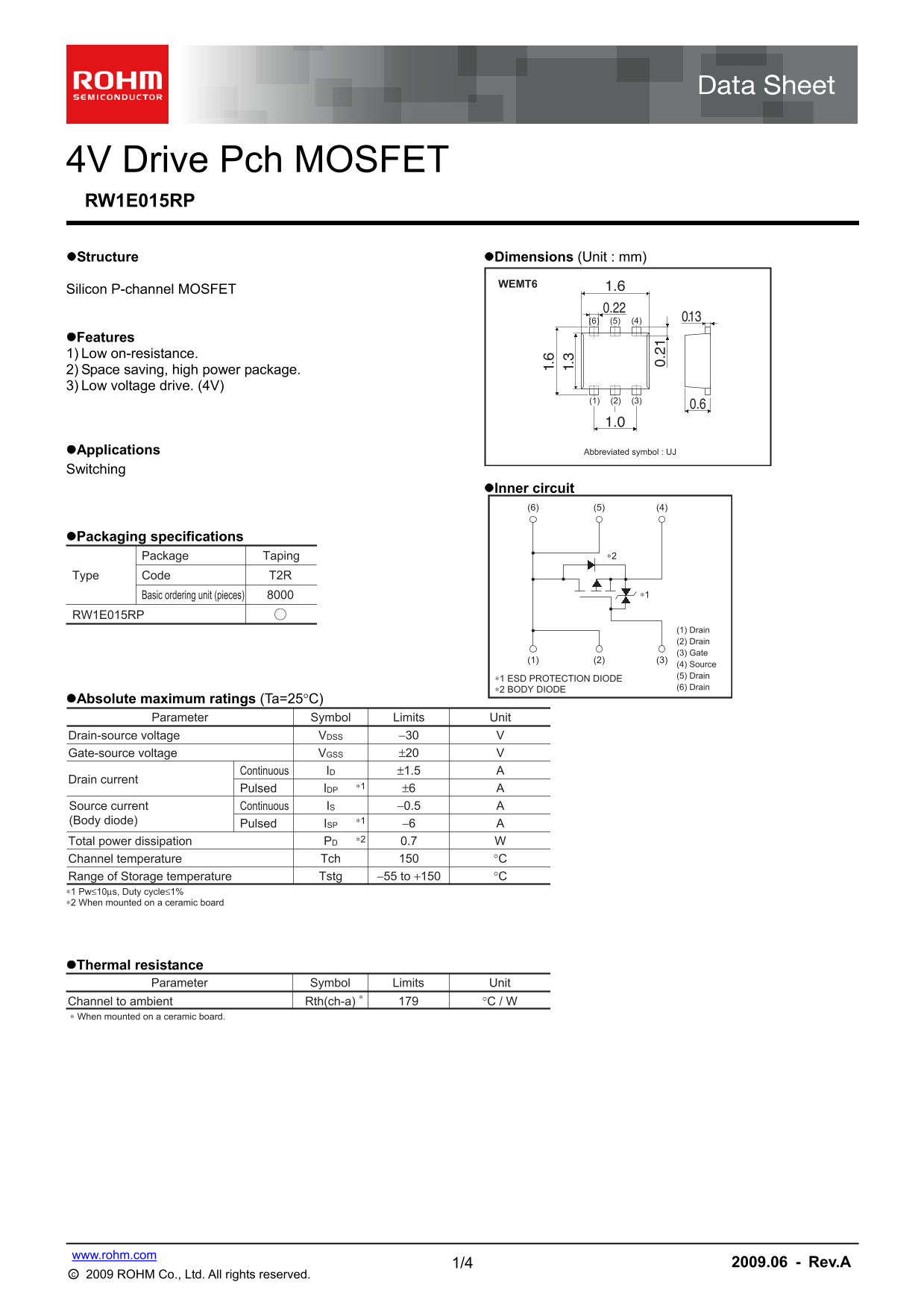

4V Drive Pch MOSFET RW1E015RP Structure Dimensions (Unit : mm)

WEMT6

Silicon P-channel MOSFET

Features 1) Low on-resistance. 2) Space saving, high power package. 3) Low voltage drive. (4V)

Applications Abbreviated symbol : UJ Switching Inner circuit

Packaging specifications

Package Taping ∗2

Type Code T2R

Basic ordering unit (pieces) ∗1

RW1E015RP

(1) Drain (2) Drain (3) Gate

(4) Source (5) Drain

∗1 ESD PROTECTION DIODE

∗2 BODY DIODE (6) Drain

Absolute maximum ratings (Ta=25°C)

Parameter Symbol Limits Unit

Drain-source voltage −30 VVDSS Gate-source voltage ±20 VVGSS Continuous ±1.5 AID

Drain current

Pulsed ∗1 ±6 AIDP

Source current Continuous −0.5 AIS (Body diode) ∗1 Pulsed −6 AISP Total power dissipation ∗2 0.7 WPD

Channel temperature °CTch

Range of Storage temperature −55 to +150 °CTstg

∗1 Pw≤10µs, Duty cycle≤1% ∗2 When mounted on a ceramic board

Thermal resistance

Parameter Symbol Limits Unit

Channel to ambient 179∗ °C / WRth(ch-a) ∗ When mounted on a ceramic board.

1/4 www.rohm.com 2009.06 - Rev.A

Page Summary Contents For ROHM RW1E015RP User Guide

Page 1 4V Drive Pch MOSFET RW1E015RP Structure Dimensions (Unit : mm) WEMT6 Silicon P-channel MOSFET Features 1) Low on-resistance. 2) Space saving, high power package. 3) Low voltage drive. (4V) Application...

Page 2 Data Sheet RW1E015RP Electrical characteristics (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS ±10 µA VGS=±20V, VDS=0V Drain-source breakdown voltage V(BR) DSS −30 ...

Page 3 Data Sheet RW1E015RP ST AT IC AI -S -S TA TE ST AT IC AI -S -S TA TE ES IS TA : R S( on )[m ES IS TA : R on )[m AI EN : - [A Electrical characteristics curves VDS= -10V VGS= -10V Pulsed VGS= -10V VGS=...

Page 4 Data Sheet RW1E015RP ST AT IC AI -S -S TA TE AP AC IT AN : C [p F] ES IS TA : R S( )[m Ta=25°C Ta=25°C Pulsed VDD= -15V td(off) VGS= -10V ID= -1.5A RG=10Ω Pulsedtf td(on) Ta=25°C VDD= -15V ID= -1.5A I...

Page 5 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
