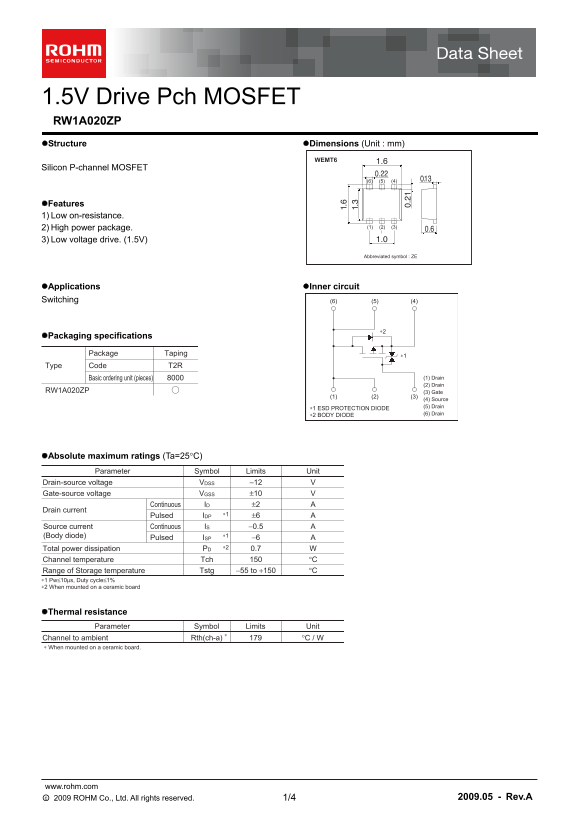

1.5V Drive Pch MOSFET RW1A020ZP Structure Dimensions (Unit : mm)

WEMT6

Silicon P-channel MOSFET

Features 1) Low on-resistance.

2) High power package. (1) (2) (3)

3) Low voltage drive. (1.5V)

Abbreviated symbol : ZE

Applications Inner circuit Switching (6) (5) (4)

Packaging specifications

Package Taping

Type Code T2R

Basic ordering unit (pieces) (1) Drain (2) Drain

RW1A020ZP (3) Gate

(4) Source (5) Drain

∗1 ESD PROTECTION DIODE

∗2 BODY DIODE (6) Drain

Absolute maximum ratings (Ta=25°C)

Parameter Symbol Limits Unit

Drain-source voltage −12 VVDSS Gate-source voltage ±10 VVGSS Continuous ±2 AID

Drain current

Pulsed ∗1 ±6 AIDP

Source current Continuous −0.5 AIS (Body diode) ∗1 Pulsed −6 AISP Total power dissipation ∗2 0.7 WPD

Channel temperature °CTch

Range of Storage temperature −55 to +150 °CTstg

∗1 Pw≤10µs, Duty cycle≤1% ∗2 When mounted on a ceramic board

Thermal resistance

Parameter Symbol Limits Unit

Channel to ambient 179∗ °C / WRth(ch-a) ∗ When mounted on a ceramic board.

Page Summary Contents For ROHM RW1A020ZP User Guide

Page 1 1.5V Drive Pch MOSFET RW1A020ZP Structure Dimensions (Unit : mm) WEMT6 Silicon P-channel MOSFET Features 1) Low on-resistance. 2) High power package. (1) (2) (3) 3) Low voltage drive. (1.5V) Abbreviat...

Page 2 RW1A020ZP Data Sheet Electrical characteristics (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS ±10 µA VGS=±10V, VDS=0V Drain-source breakdown voltage V(BR) DSS −12 ...

Page 3 RW1A020ZP Data Sheet ST AT IC AI -S -S TA TE ST AT IC AI -S -S TA TE ES IS TA : R on )[m ES IS TA : R on )[m AI EN : - [A Electrical characteristics curves Ta=25°C Ta=25°C VDS= -6V 3.5 Pulsed-10V 3.5 ...

Page 4 RW1A020ZP Data Sheet Ta=25°C AT E- SO VO LT AG : - V] EV ER SE AI EN : - Is [A VGS=0V Ta=25°C VDD= -6V S [ Pulsed Pulsed td(off) VGS=-4.5V RG=10Ω Pulsed tf ID= -1A ID= -2A Ta=125°C 0.1 Ta=75°C Ta=25°C...

Page 5 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
