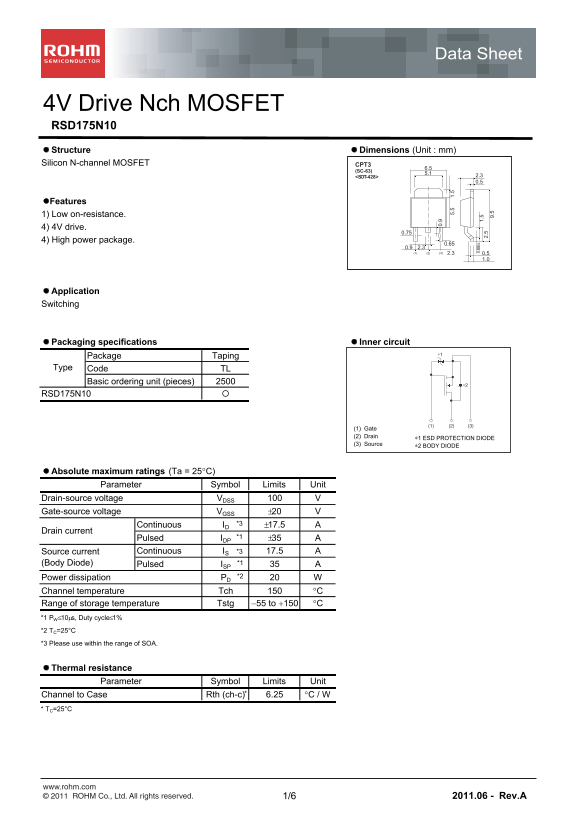

Data Sheet

4V Drive Nch MOSFET RSD175N10 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET CPT3

(SC-63)

<SOT-428> 2.3 0.5

Features 1) Low on-resistance. 4) 4V drive.

4) High power package.

Application Switching

Packaging specifications Inner circuit

Package Taping Type Code TL Basic ordering unit (pieces)

RSD175N10

(1) Gate (2) Drain ∗1 ESD PROTECTION DIODE

(3) Source ∗2 BODY DIODE

Absolute maximum ratings (Ta = 25C)

0. 8M in

Parameter Symbol Limits Unit 2.

Drain-source voltage VDSS Gate-source voltage VGSS 20

Continuous ID *3 17.5

Drain current

Pulsed IDP *1 35

Source current Continuous IS *3 17.5

(Body Diode) Pulsed ISP *1 Power dissipation PD *2

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 PW10s, Duty cycle1% *2 TC=25°C *3 Please use within the range of SOA.

Thermal resistance

Parameter Symbol Limits Unit

Channel to Case Rth (ch-c) 6.25 C / W * TC=25°C

www.rohm.com © 2011 ROHM Co., Ltd. All rights reserved. 1/6 2011.06 - Rev.A
