ROHM RPMS2401-H19 User Guide
Summary
The RPMS2401-H19 is an ultra-compact surface mount photoreceiver module designed for demanding portable electronics applications. Featuring the world's smallest mounting area and enhanced resistance to sunlight noise, it ensures reliable signal capture in diverse environments. This technical manual provides complete electrical and optical specifications, guiding designers on optimal integration into digital cameras, car navigation systems, laptops, and gaming consoles. Ideal for professional engineers seeking high performance with minimal footprint.
Page 1 Text Content
RPMS2401-H19 series
Photo Link Module

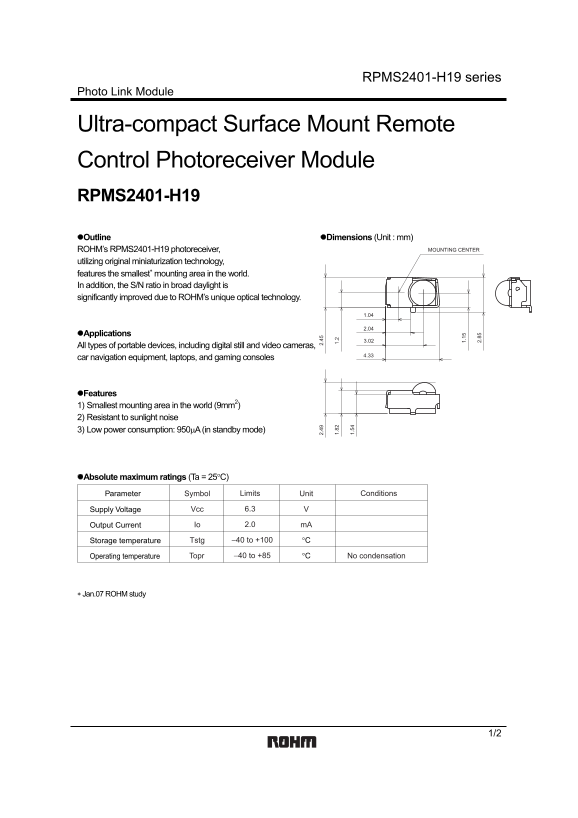

Ultra-compact Surface Mount Remote Control Photoreceiver Module RPMS2401-H19 Outline Dimensions (Unit : mm)
ROHM’s RPMS2401-H19 photoreceiver, MOUNTING CENTER
utilizing original miniaturization technology, features the smallest∗ mounting area in the world. In addition, the S/N ratio in broad daylight is significantly improved due to ROHM’s unique optical technology.
Applications
All types of portable devices, including digital still and video cameras,
car navigation equipment, laptops, and gaming consoles
Features 1) Smallest mounting area in the world (9mm2) 2) Resistant to sunlight noise 3) Low power consumption: 950µA (in standby mode)
Absolute maximum ratings (Ta = 25°C) 2.
Parameter Symbol Limits Unit Conditions
Supply Voltage Vcc 6.3
Output Current Io 2.0 m A
Storage temperature Tstg −40 to +100 °C
Operating temperature Topr −40 to +85 °C No condensation
∗ Jan.07 ROHM study
