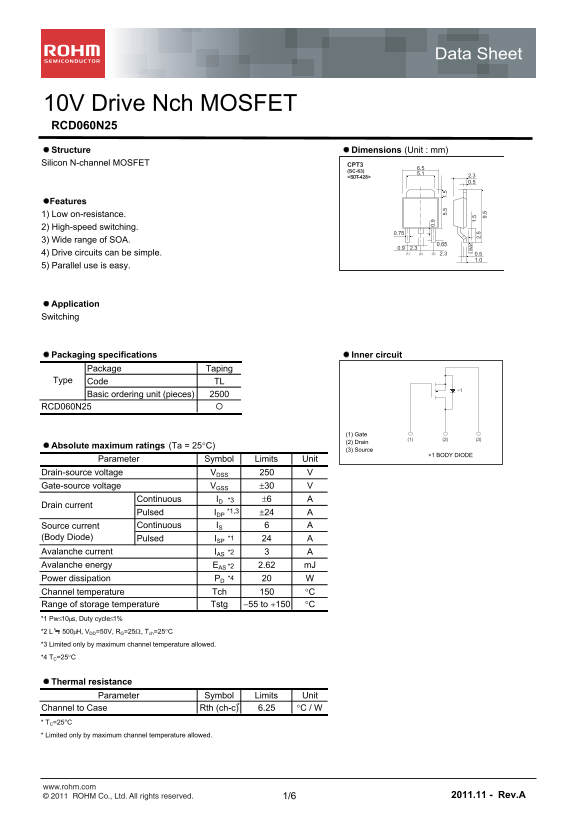

Data Sheet

10V Drive Nch MOSFET RCD060N25 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET CPT3

(SC-63)

<SOT-428> 2.3 0.5

Features 1) Low on-resistance. 2) High-speed switching.

3) Wide range of SOA.

2.30.9 4) Drive circuits can be simple. (1) (3) 2.3(2) 0.5

5) Parallel use is easy.

Application Switching

Packaging specifications Inner circuit

Package Taping Type Code TL

Basic ordering unit (pieces)

RCD060N25

(1) Gate 0.

(2) Drain

Absolute maximum ratings (Ta = 25C) 5. 1.

(3) Source

1 BODY DIODE

Parameter Symbol Limits Unit

0. 8M in

Drain-source voltage VDSS 1.

Gate-source voltage VGSS 30 9.

Continuous ID *3 6

Drain current

Pulsed IDP *1,3 24

Source current Continuous IS

(Body Diode) Pulsed ISP *1

Avalanche current IAS *2

Avalanche energy EAS *2 2.62 m J

Power dissipation PD *4

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 L 500H, VDD=50V, RG=25, Tch=25C *3 Limited only by maximum channel temperature allowed. *4 TC=25C

Thermal resistance

Parameter Symbol Limits Unit

Channel to Case Rth (ch-c) 6.25 C / W * TC=25°C * Limited only by maximum channel temperature allowed.
