ROHM R6018ANX User Guide

Summary

This N-channel 600V, 18A Power MOSFET is engineered for efficient high-power switching applications requiring fast response times and low energy loss. Ideal for designers building modern switching power supplies and robust electronic systems. The comprehensive technical manual provides critical operating parameters, including detailed electrical characteristics, thermal management curves, and absolute maximum ratings, ensuring accurate integration and reliable circuit design.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 14 ›

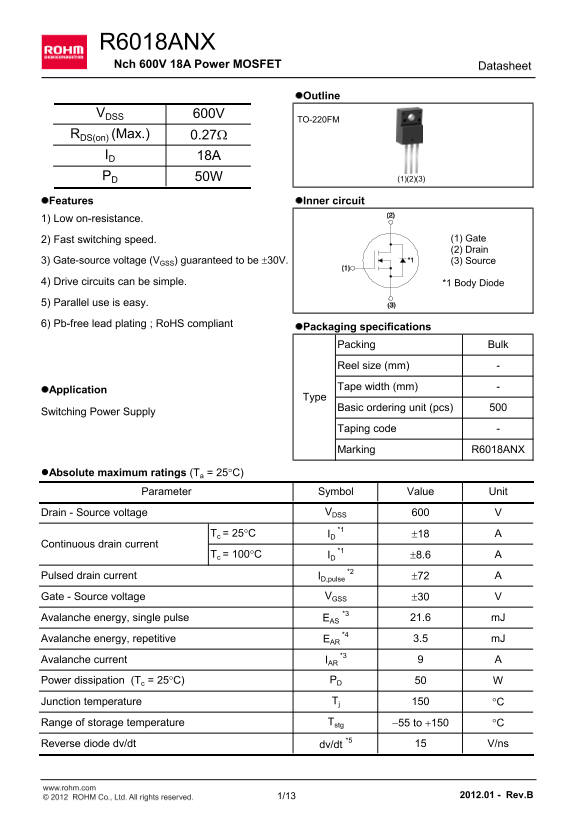

‹ ROHM R6018ANX User Guide - Page 1 ›

Page 1 Text Content

R6018ANX Nch 600V 18A Power MOSFET Datasheet

Outline

TO-220FM600V

RDS(on) (Max.) 0.27Ω ID 18A PD 50W (1) (2) (3) Features Inner circuit 1) Low on-resistance.

2) Fast switching speed. (1) Gate (2) Drain

3) Gate-source voltage (VGSS) guaranteed to be ±30V. (3) Source

4) Drive circuits can be simple. *1 Body Diode

5) Parallel use is easy. 6) Pb-free lead plating ; Ro HS compliant

Packaging specifications

Packing Bulk

Reel size (mm) Tape width (mm)

Application

Type Basic ordering unit (pcs)

Switching Power Supply

Taping code

Marking R6018ANX

Absolute maximum ratings (Ta = 25°C)

Parameter Symbol Value Unit

Drain - Source voltage VDSS *1

Tc = 25°C ID ±18

Continuous drain current

Tc = 100°C ID ±8.6

Pulsed drain current ID,pulse ±72

Gate - Source voltage VGSS ±30

Avalanche energy, single pulse EAS *3 21.6 m J

Avalanche energy, repetitive EAR 3.5 m J

Avalanche current IAR

Power dissipation (Tc = 25°C) PD Junction temperature Tj °C Range of storage temperature Tstg −55 to +150 °C

Reverse diode dv/dt dv/dt *5 V/ns

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/13 2012.01 - Rev.B

Page Summary Contents For ROHM R6018ANX User Guide

Page 1 R6018ANX Nch 600V 18A Power MOSFET Datasheet Outline TO-220FM600V RDS(on) (Max.) 0.27Ω ID 18A PD 50W (1) (2) (3) Features Inner circuit 1) Low on-resistance. 2) Fast switching speed. (1) Gate (2) D...
Page 2 Data Sheet R6018ANX Absolute maximum ratings Parameter Symbol Conditions Values Unit VDS = 480V, ID = 18A Drain - Source voltage slope dv/dt V/ns Tj = 125°C Thermal resistance Values Parameter Symbo...
Page 3 Data Sheet R6018ANX Electrical characteristics (Ta = 25°C) Values Parameter Symbol Conditions Unit Min. Typ. Max. *6 gfs VDS = 10V, ID = 9.0A, 6.5 13Transconductance Input capacitance Ciss VGS = 0V O...
Page 4 Data Sheet R6018ANX Body diode electrical characteristics (Source-Drain) (Ta = 25°C) Values Parameter Symbol Conditions Unit Min. Typ. Max. Inverse diode continuous, IS *1 forward current Tc = 25°C I...
Page 5 Data Sheet R6018ANX or al iz ed ra ns ie nt he rm al es is ta nc : r (t) Po er is si pa tio /P ax . [ Electrical characteristic curves Fig.1 Power Dissipation Derating Curve Fig.2 Maximum Safe Operat...
Page 6 Data Sheet R6018ANX Av al an ch En er gy / E ax . [ Av al an ch ur re nt [A Electrical characteristic curves Fig.4 Avalanche Current vs Inductive Load Fig.5 Avalanche Power Losses Ta = 25ºC Ta = 25ºC...
Page 7 Data Sheet R6018ANX ra in ur re nt [A ra in ur re nt [A Electrical characteristic curves Fig.7 Typical Output Characteristics(I) Fig.8 Typical Output Characteristics(II) Ta = 25ºC Pulsed 8.0V Ta = 25...
Page 8 Data Sheet R6018ANX ra in So ur ce re ak do Vo lta ge [V at Th re sh ol Vo lta ge V] (B )D SS Electrical characteristic curves S( th ) [ Fig.11 Breakdown Voltage Fig.12 Typical Transfer Characteristi...
Page 9 Data Sheet R6018ANX St at ic ra in So ur ce n- St at es is ta nc St at ic ra in So ur ce n- St at es is ta nc : R : R S( on ) [ S( on ) [ Electrical characteristic curves Fig.15 Static Drain - Source...
Page 10 Data Sheet R6018ANX Sw itc hi ng im : t [n s] ap ac ita nc : C [p F] Electrical characteristic curves Fig.18 Typical Capacitance Fig.19 Coss Stored Energy vs. Drain - Source Voltage Ta = 25ºC Ta = 25...
Page 11 Data Sheet R6018ANX In ve rs io de or ar ur re nt [A Electrical characteristic curves Fig.22 Inverse Diode Forward Current Fig.23 Reverse Recovery Time vs. Source - Drain Voltage vs.Inverse Diode For...
Page 12 Data Sheet R6018ANX Measurement circuits Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms Fig.2-1 Gate Charge Measurement Circuit Fig.2-2 Gate Charge Waveform Fig.3-1 Avalanche ...
Page 13 Data Sheet R6018ANX Dimensions (Unit : mm) ATO-220FM MILIMETERS INCHES MIN MAX MIN MAX 16.60 17.60 0.654 0.693 Dimension in mm/inches www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 13/13 201...
Page 14 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
