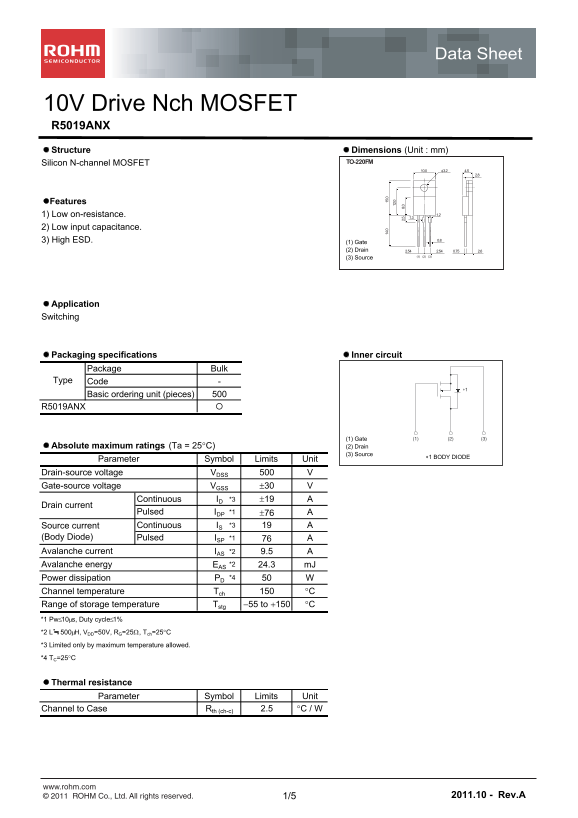

Data Sheet

10V Drive Nch MOSFET R5019ANX Structure Dimensions (Unit : mm)

Silicon N-channel MOSFET TO-220FM

Features

1) Low on-resistance. 1.2

2) Low input capacitance.

3) High ESD. 0.8

(1) Gate (2) Drain 2.54 0.75 2.62.54

(3) Source (2) (3)(1)

Application Switching

Packaging specifications Inner circuit

Package Bulk Type Code

Basic ordering unit (pieces) .0 2. 8.

R5019ANX

(1) Gate (1) (3)(2)

Absolute maximum ratings (Ta = 25C) (2) Drain

(3) Source

1 BODY DIODE

Parameter Symbol Limits Unit

Drain-source voltage VDSS Gate-source voltage VGSS 30

Continuous ID *3 19

Drain current

Pulsed IDP *1 76 Source current Continuous IS *3

(Body Diode) Pulsed ISP *1

Avalanche current IAS *2 9.5 Avalanche energy EAS *2 24.3 m J Power dissipation PD *4

Channel temperature Tch C

Range of storage temperature Tstg 55 to 150 C

*1 Pw10s, Duty cycle1%

*2 L 500H, VDD=50V, RG=25, Tch=25C

*3 Limited only by maximum temperature allowed.

*4 TC=25C

Thermal resistance

Parameter Symbol Limits Unit

Channel to Case Rth (ch-c) 2.5 C / W

www.rohm.com

Page Summary Contents For ROHM R5019ANX User Guide

Page 1 Data Sheet 10V Drive Nch MOSFET R5019ANX Structure Dimensions (Unit : mm) Silicon N-channel MOSFET TO-220FM Features 1) Low on-resistance. 1.2 2) Low input capacitance. 3) High ESD. 0.8 (1) Gate (2...

Page 2 Data Sheet R5019ANX Electrical characteristics (Ta = 25C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 100 n A VGS=30V, VDS=0V Drain-source breakdown voltage V(BR)DSS I...

Page 3 Data Sheet R5019ANX IC IN -S -S IS (o (Ω (V (t ra in rr Electrical characteristic curves Fig.1 Typical Output Characteristics (Ⅰ) Fig.2 Typical Output Characteristics (Ⅱ) Fig.3 Typical Transfer Chara...

Page 4 Data Sheet R5019ANX IT IN IM IT Fig.10 Typical Capacitance vs. Fig.11 Dynamic Input Characteristics Fig.12 Reverse Recovery Time vs. Drain-Source Voltage Source Current Ta= 25℃ VDD= 250V ID= 19A RG= 1...

Page 5 Data Sheet R5019ANX Measurement circuits Pulse width VGS ID VDS 90% 50% 50% RL VGS 10% RG VDD 90% 90% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2 Switching Waveform...

Page 6 Notice Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/conta...
