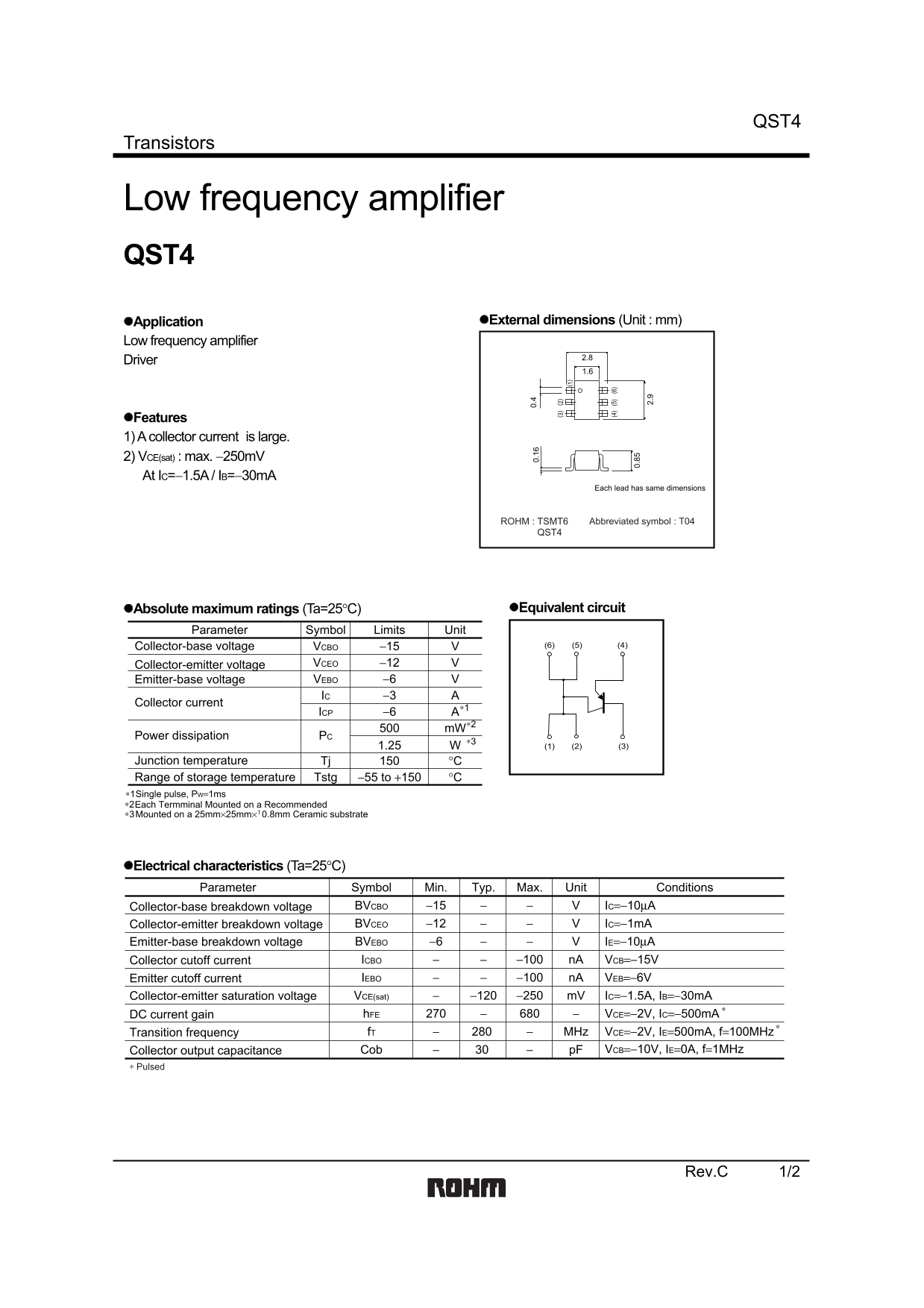

Page 1 Text Content
Transistors
Low frequency amplifier QST4
Application External dimensions (Unit : mm)
Low frequency amplifier
Driver
Features 1) A collector current is large. 2) VCE(sat) : max. −250m V At IC=−1.5A / IB=−30m A
Each lead has same dimensions
ROHM : TSMT6 Abbreviated symbol : T04
QST4 0.
Absolute maximum ratings (Ta=25°C) Equivalent circuit
Parameter Symbol Limits Unit
Collector-base voltage VCBO −15 (4)(5)(6)
Collector-emitter voltage VCEO −12 Emitter-base voltage VEBO −6 IC −3
Collector current
ICP −6
Power dissipation PC
Junction temperature Tj °C Range of storage temperature Tstg −55 to +150 °C ∗1 Single pulse, PW=1ms ∗2 Each Termminal Mounted on a Recommended ∗3 Mounted on a 25mm×25mm× 0.8mm Ceramic substratet
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO −15 IC=−10µA Collector-emitter breakdown voltage BVCEO −12 IC=−1m A Emitter-base breakdown voltage BVEBO −6 IE=−10µA
Collector cutoff current ICBO −100 n A VCB=−15V
Emitter cutoff current IEBO −100 n A VEB=−6V
Collector-emitter saturation voltage VCE(sat) −120 −250 m V IC=−1.5A, IB=−30m A DC current gain h FE VCE=−2V, IC=−500m A Transition frequency f T 280 − MHz VCE=−2V, IE=500m A, f=100MHz
Collector output capacitance Cob p F VCB=−10V, IE=0A, f=1MHz
∗ Pulsed
Rev.C 1/2
