Data Sheet

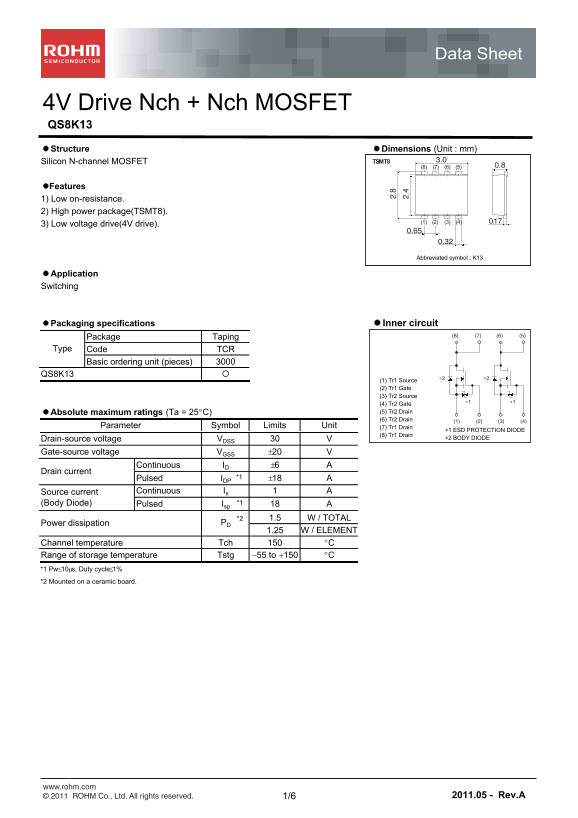

4V Drive Nch + Nch MOSFET QS8K13 Structure Dimensions (Unit : mm)

Silicon N-channel MOSFET TSMT8

Features 1) Low on-resistance. 2) High power package(TSMT8).

3) Low voltage drive(4V drive).

Abbreviated symbol : K13

Application Switching

Packaging specifications Inner circuit

Package Taping Type Code TCR Basic ordering unit (pieces)

QS8K13

(1) Tr1 Source (2) Tr1 Gate (3) Tr2 Source

(4) Tr2 Gate Absolute maximum ratings (Ta = 25C) (5) Tr2 Drain (6) Tr2 Drain (1) (2) (3) (4)

Parameter Symbol Limits Unit (7) Tr1 Drain

∗1 ESD PROTECTION DIODE

(8) Tr1 Drain

Drain-source voltage VDSS ∗2 BODY DIODE

Gate-source voltage VGSS 20 Continuous ID 6

Drain current

Pulsed IDP *1 18

Source current Continuous Is

(Body Diode) Pulsed Isp *1

*2 1.5 W / TOTAL

Power dissipation PD

1.25 W / ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.
