ROHM QS5U26 User Guide

Summary

The QS5U26 is a versatile power component integrating a P-channel MOSFET with a Schottky Barrier Diode in one package. Designed for efficient switching applications, it features low on-state resistance and requires minimal 2.5V drive voltage. This manual provides comprehensive technical data, including detailed electrical characteristics, absolute maximum ratings, and performance graphs for reliable circuit design. Ideal for electronic appliances and general power control circuits requiring fast, durable switching capability.

📄 Preview PAGE OF 5

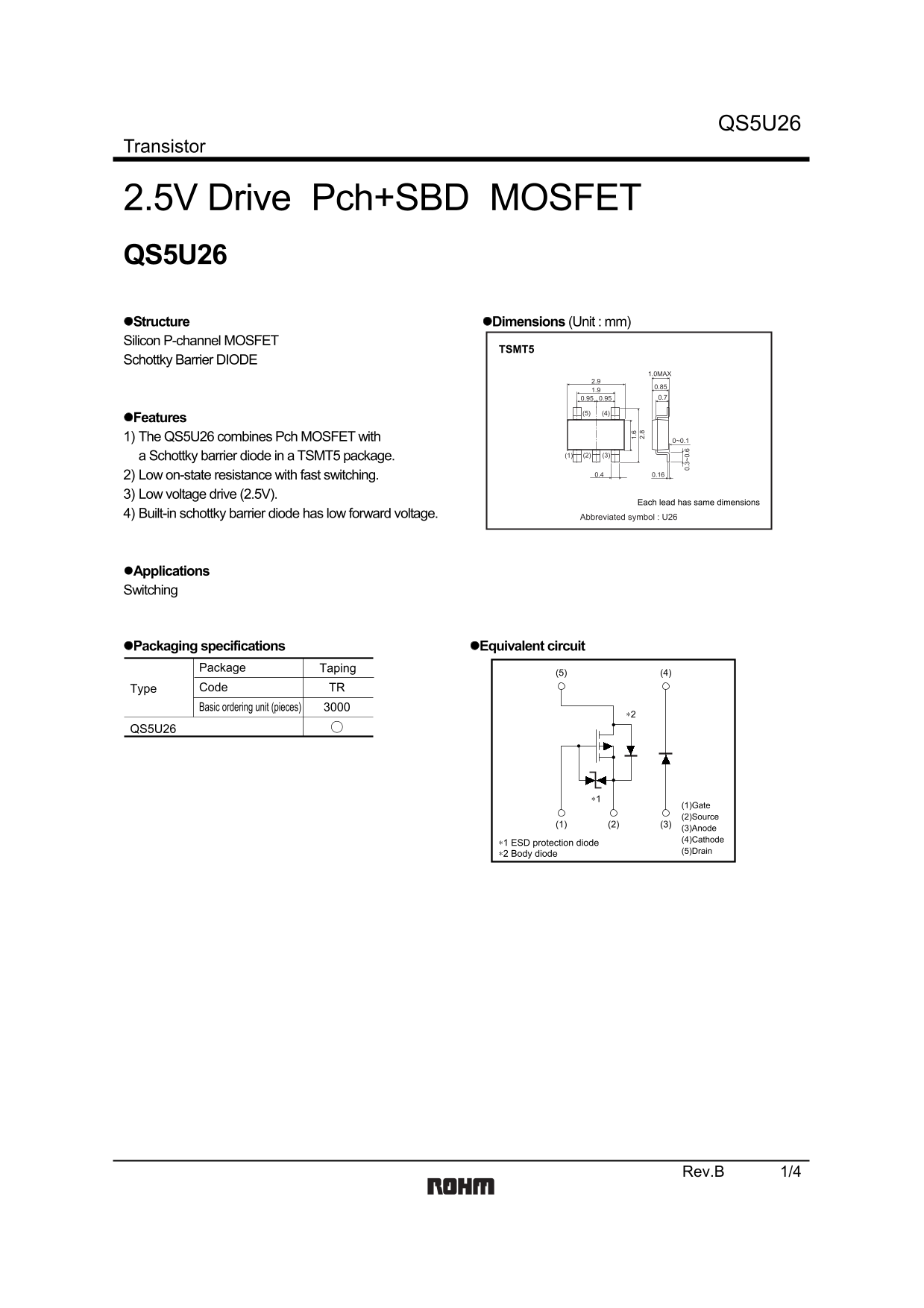

Page 1 Text Content

QS5U26

Transistor

2.5V Drive Pch+SBD MOSFET QS5U26 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET

TSMT5

Schottky Barrier DIODE

1.0MAX

Features 1) The QS5U26 combines Pch MOSFET with 0~0.1

a Schottky barrier diode in a TSMT5 package. (1) (3)(2)

2) Low on-state resistance with fast switching. 0.4 0.16

3) Low voltage drive (2.5V).

Each lead has same dimensions

4) Built-in schottky barrier diode has low forward voltage. Abbreviated symbol : U26

Applications Switching

Packaging specifications Equivalent circuit

Package Taping

Code TR 0. 3~ 0.

Basic ordering unit (pieces)

QS5U26

(1)Gate (2)Source

(3)Anode (4)Cathode

∗1 ESD protection diode

∗2 Body diode (5)Drain

Rev.B 1/4

Page Summary Contents For ROHM QS5U26 User Guide

Page 1 QS5U26 Transistor 2.5V Drive Pch+SBD MOSFET QS5U26 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET TSMT5 Schottky Barrier DIODE 1.0MAX Features 1) The QS5U26 combines Pch MOSFET with 0~0.1 a...
Page 2 QS5U26 Transistor Absolute maximum ratings (Ta=25°C) <MOSFET> Parameter Symbol Limits Unit Drain-source voltage −20 VVDSS Gate-source voltage ±12 VVGSS Continuous ±1.5 AID Drain current Pulsed ±...
Page 3 IN −I IC IN -S QS5U26 IN −I -S IS on ) ( Transistor Electrical characteristic curves VDS=−10V VGS=−4.5V VGS=−4V Pulsed Pulsed Pulsed Ta=125°C 0.1 Ta=125°C Ta=75°C Ta=125°C Ta=75°C Ta=75°C Ta=25°C Ta=−...
Page 4 QS5U26 Transistor FORWARD VOLTAGE : VF (V) REVERSE VOLTAGE : VR (V) Fig.10 Forward Current Fig.11 Reverse Current vs. Forward Voltage vs. Reverse Voltage Notice SBD has a large reverse leak current co...
Page 5 Appendix Notes No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM CO.,LTD. The content specified herein is subject to change for improvement wit...

Manual Details

Brand ROHM
Pages 5
File Size 101.73 KB
Published July 12, 2026
0 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What types of critical equipment should I NOT use this transistor in?

It is not suitable for equipment requiring extreme reliability, such as medical instruments or aerospace machinery.

How much total power can the device safely dissipate?

The total allowable power dissipation ($ ext{P}_{ ext{D}}$) when mounted on a ceramic board is 1.25 W / TOTAL.

What is the continuous drain current rating for this transistor?

The continuous drain current ($ ext{I}_{ ext{D}}$) limit is specified as $-1.5 ext{ A}$.
