ROHM Near Edge Thermal Printhead User Guide
Summary
Designed for specialized industrial printing, this near edge thermal printhead enables high-quality straight-line output on flat media without bending the substrate. Unlike conventional designs, our unique structure incorporates heating elements cost-effectively, ensuring high productivity. This manual provides detailed technical insights into its application and use. It is ideal for engineers and manufacturers requiring reliable, flat-surface printing solutions while minimizing production complexity and costs.
Page 1 Text Content
Printheads

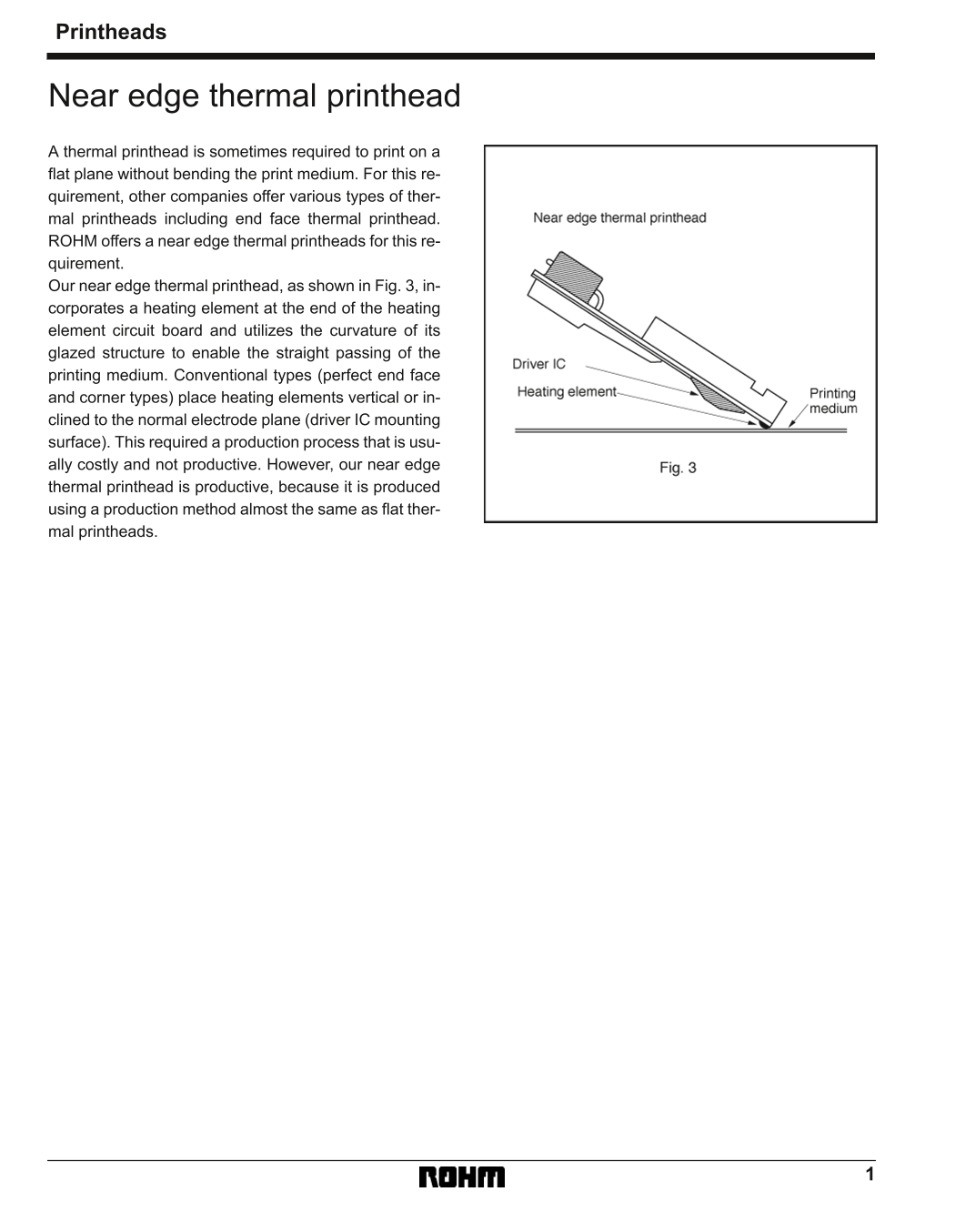

Near edge thermal printhead A thermal printhead is sometimes required to print on a flat plane without bending the print medium. For this re- quirement, other companies offer various types of ther- mal printheads including end face thermal printhead. ROHM offers a near edge thermal printheads for this re- quirement. Our near edge thermal printhead, as shown in Fig. 3, in- corporates a heating element at the end of the heating element circuit board and utilizes the curvature of its glazed structure to enable the straight passing of the printing medium. Conventional types (perfect end face and corner types) place heating elements vertical or in- clined to the normal electrode plane (driver IC mounting surface). This required a production process that is usu- ally costly and not productive. However, our near edge thermal printhead is productive, because it is produced using a production method almost the same as flat ther- mal printheads.
