The NB3004-VA10A is a high-resolution, thin-film thermal printhead designed for producing crisp images at up to 300 DPI and 10 inches/second. Ideal for manufacturers developing professional barcode label printers, specialized ticket printers, and compact general-purpose devices. This manual provides comprehensive technical documentation, including detailed pin assignments, timing charts, equivalent circuits, electrical curves, and functional specifications needed for seamless integration into your printing solutions.
Page 1 Text Content
查询NB3004VA10A供应商
Printheads

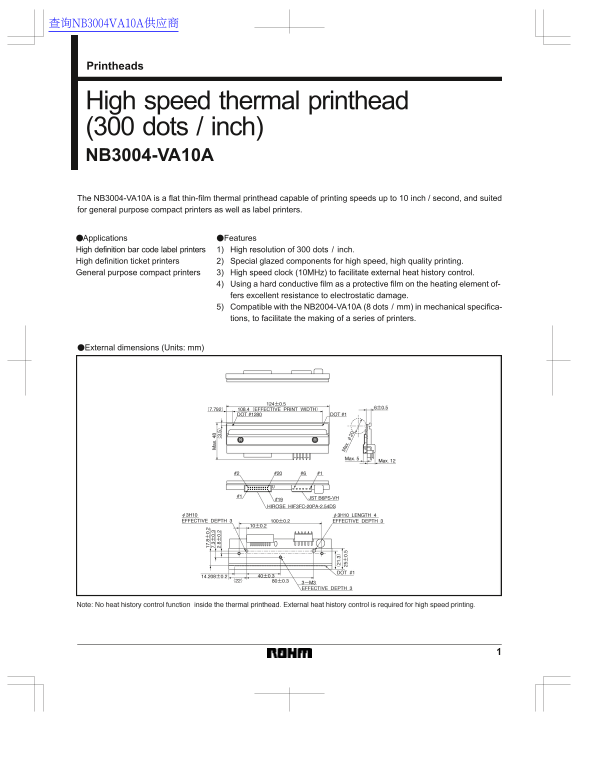

High speed thermal printhead (300 dots / inch) NB3004-VA10A The NB3004-VA10A is a flat thin-film thermal printhead capable of printing speeds up to 10 inch / second, and suited for general purpose compact printers as well as label printers. Applications Features High definition bar code label printers 1) High resolution of 300 dots / inch. High definition ticket printers 2) Special glazed components for high speed, high quality printing. General purpose compact printers 3) High speed clock (10MHz) to facilitate external heat history control.
4) Using a hard conductive film as a protective film on the heating element of- fers excellent resistance to electrostatic damage. 5) Compatible with the NB2004-VA10A (8 dots / mm) in mechanical specifica- tions, to facilitate the making of a series of printers.
