ROHM NF2003-VA10A Data Sheet
Summary
The NF2003-VA10A is a high-speed, flat thin-film thermal printhead engineered for reliability and quality printing up to 12 inches/second. Suited for general purpose compact printers and specialized label applications, it excels in bar code, ticket, and various commercial printing needs. This technical manual provides comprehensive guidance for integration, detailing essential parameters such as pin assignments, timing charts, equivalent circuits, electrical characteristic curves, and supported speed configurations to ensure optimal performance.

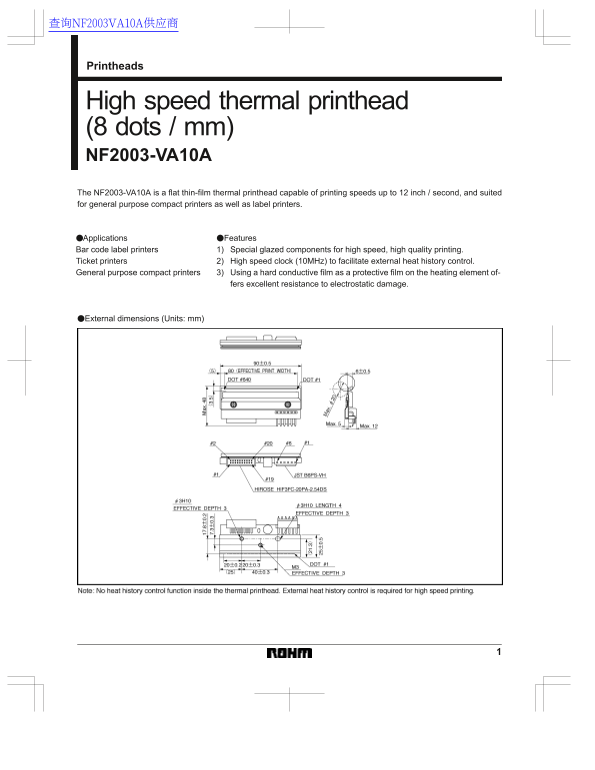

Page 1 Text Content
查询NF2003VA10A供应商
Printheads
High speed thermal printhead (8 dots / mm) NF2003-VA10A The NF2003-VA10A is a flat thin-film thermal printhead capable of printing speeds up to 12 inch / second, and suited for general purpose compact printers as well as label printers. Applications Features Bar code label printers 1) Special glazed components for high speed, high quality printing. Ticket printers 2) High speed clock (10MHz) to facilitate external heat history control. General purpose compact printers 3) Using a hard conductive film as a protective film on the heating element of-
fers excellent resistance to electrostatic damage.
External dimensions (Units: mm)
Page Summary Contents For ROHM NF2003-VA10A Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 5 |
| File Size | 188.86 KB |
| Published | June 21, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
NF2003-VA10A的最高打印速度是多少？
该热打印头可达到每秒高达12英寸的打印速度。
这款打印头适用于哪些设备类型？
它适合通用便携式打印机和标签打印机，也可用于条形码打印机和票据打印机。
为了保证高打印速度和质量，该产品具有哪些特殊设计？
具有专用的釉化组件（glazed components）以及硬导电膜作为加热元件的保护层。
NF2003-VA10A的核心技术参数包括哪些方面？
其具备高频时钟（10MHz），并提供详细的引脚分配、时序图和电气特性曲线等信息。
