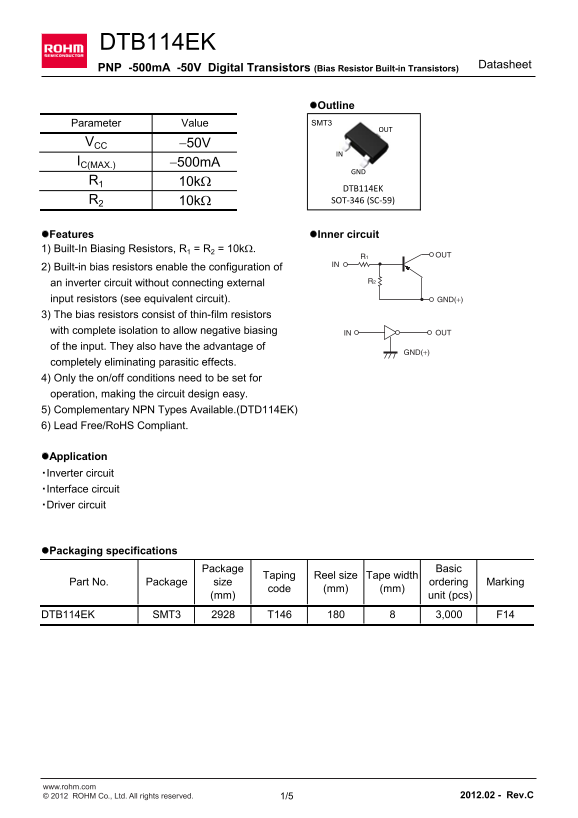

Page 1 Text Content
DTB114EK
Datasheet
PNP -500m A -50V Digital Transistors (Bias Resistor Built-in Transistors)
Outline Parameter Value SMT3
VCC 50V
IC(MAX.) 500m A
DTB114EK R2 10k SOT‐346 (SC‐59)
Features Inner circuit 1) Built-In Biasing Resistors, R1 = R2 = 10k.
R1 OUT
2) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see equivalent circuit). GND(+)
3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing IN OUT of the input. They also have the advantage of
GND(+)
completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary NPN Types Available.(DTD114EK) 6) Lead Free/Ro HS Compliant.
Application ・Inverter circuit ・Interface circuit ・Driver circuit
Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs) DTB114EK SMT3 T146 3,000 F14
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/5 2012.02 - Rev.C
