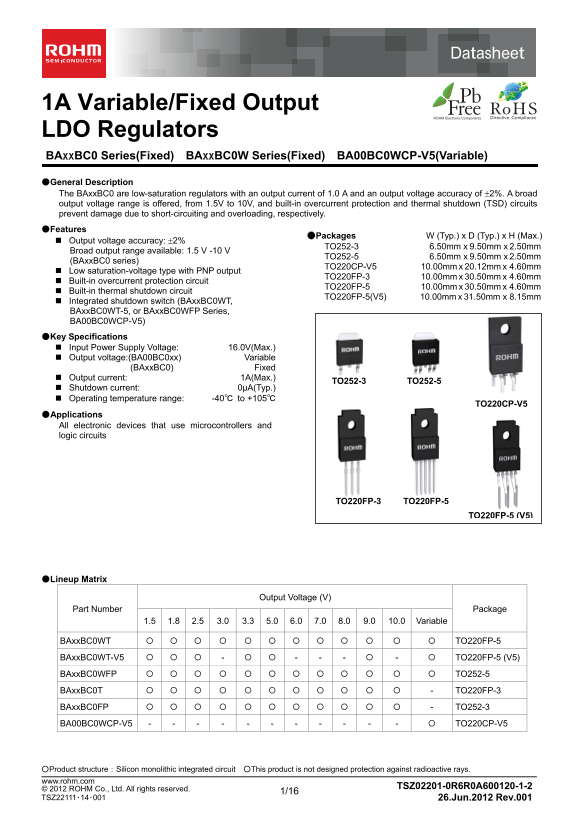

Datasheet
1A Variable/Fixed Output LDO Regulators BAxx BC0 Series(Fixed) BAxx BC0W Series(Fixed) BA00BC0WCP-V5(Variable) ●General Description The BAxx BC0 are low-saturation regulators with an output current of 1.0 A and an output voltage accuracy of ±2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively. ●Features
●Packages W (Typ.) x D (Typ.) x H (Max.)
Output voltage accuracy: ±2%
TO252-3 6.50mm x 9.50mm x 2.50mm
Broad output range available: 1.5 V -10 V
TO252-5 6.50mm x 9.50mm x 2.50mm
(BAxx BC0 series)
TO220CP-V5 10.00mm x 20.12mm x 4.60mm
Low saturation-voltage type with PNP output
TO220FP-3 10.00mm x 30.50mm x 4.60mm
Built-in overcurrent protection circuit
TO220FP-5 10.00mm x 30.50mm x 4.60mm
Built-in thermal shutdown circuit
TO220FP-5(V5) 10.00mm x 31.50mm x 8.15mm
Integrated shutdown switch (BAxx BC0WT, BAxx BC0WT-5, or BAxx BC0WFP Series, BA00BC0WCP-V5) ●Key Specifications Input Power Supply Voltage: 16.0V(Max.) Output voltage:(BA00BC0xx) Variable
(BAxx BC0) Fixed
Output current: 1A(Max.)
TO252-3 TO252-5
Shutdown current: 0μA(Typ.) Operating temperature range: -40℃ to +105℃
TO220CP-V5
●Applications All electronic devices that use microcontrollers and logic circuits
TO220FP-3 TO220FP-5
TO220FP-5 (V5)
●Lineup Matrix
Output Voltage (V)
Part Number Package
1.5 1.8 2.5 3.0 3.3 5.0 6.0 7.0 8.0 9.0 10.0 Variable
BAxx BC0WT TO220FP-5 BAxx BC0WT-V5 - - - - - TO220FP-5 (V5) BAxx BC0WFP TO252-5 BAxx BC0T - TO220FP-3 BAxx BC0FP - TO252-3 BA00BC0WCP-V5 - - - - - - - - - - - TO220CP-V5
○Product structure：Silicon monolithic integrated circuit ○This product is not designed protection against radioactive rays. www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved.
1/16 TSZ02201-0R6R0A600120-1-2
TSZ22111･14･001 26.Jun.2012 Rev.001
